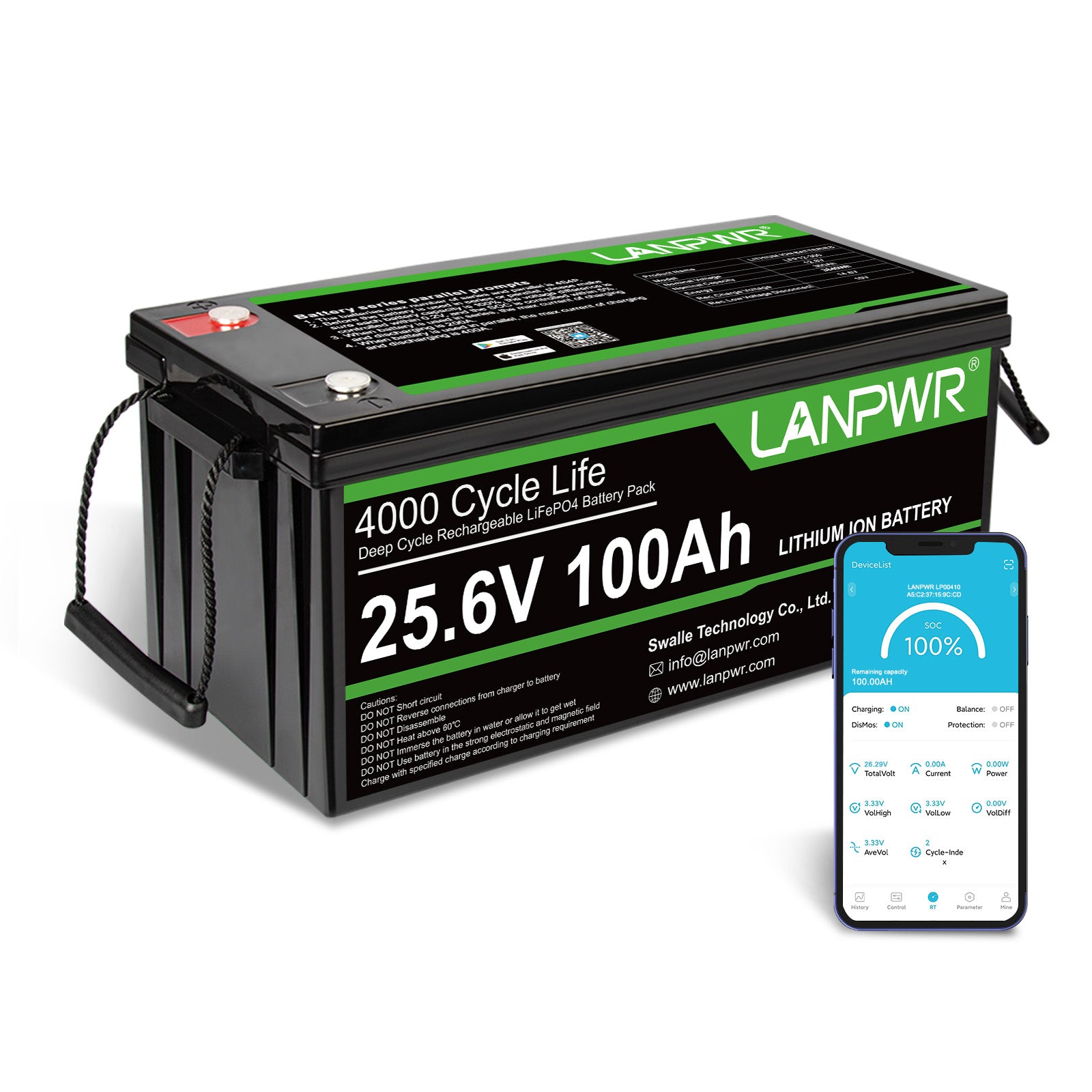

LANPWR 24V 100Ah LiFePO4 Battery with Bluetooth 5.0, Maximum Load Power 2560W, 2560Wh Energy
Highlight:
🔥Bluetooth Real-Time Monitoring: Meet new LANPWR 24V 100Ah LiFePO4 battery featuring Bluetooth 5.0. Now you can check the status of battery voltage, current and capacity at any time from your phone. Also you'll be able to keep a close eye on the battery remaining working life. Stay confident and focused on every fishing trip without worrying about unexpected power loss
- Bluetooth 5.0, Auto-connection, smart control & monitor battery with xiaoxiangElectric App
- EV Grade-A LiFePO4 Cells, 4000+ cycles@100%DOD
- Built-in 100A BMS, Supports Max 100A Continuous Discharge and 100A Charge
- 10X charging efficiency, 2X runtime time (compared with regular lead-acid batteries)

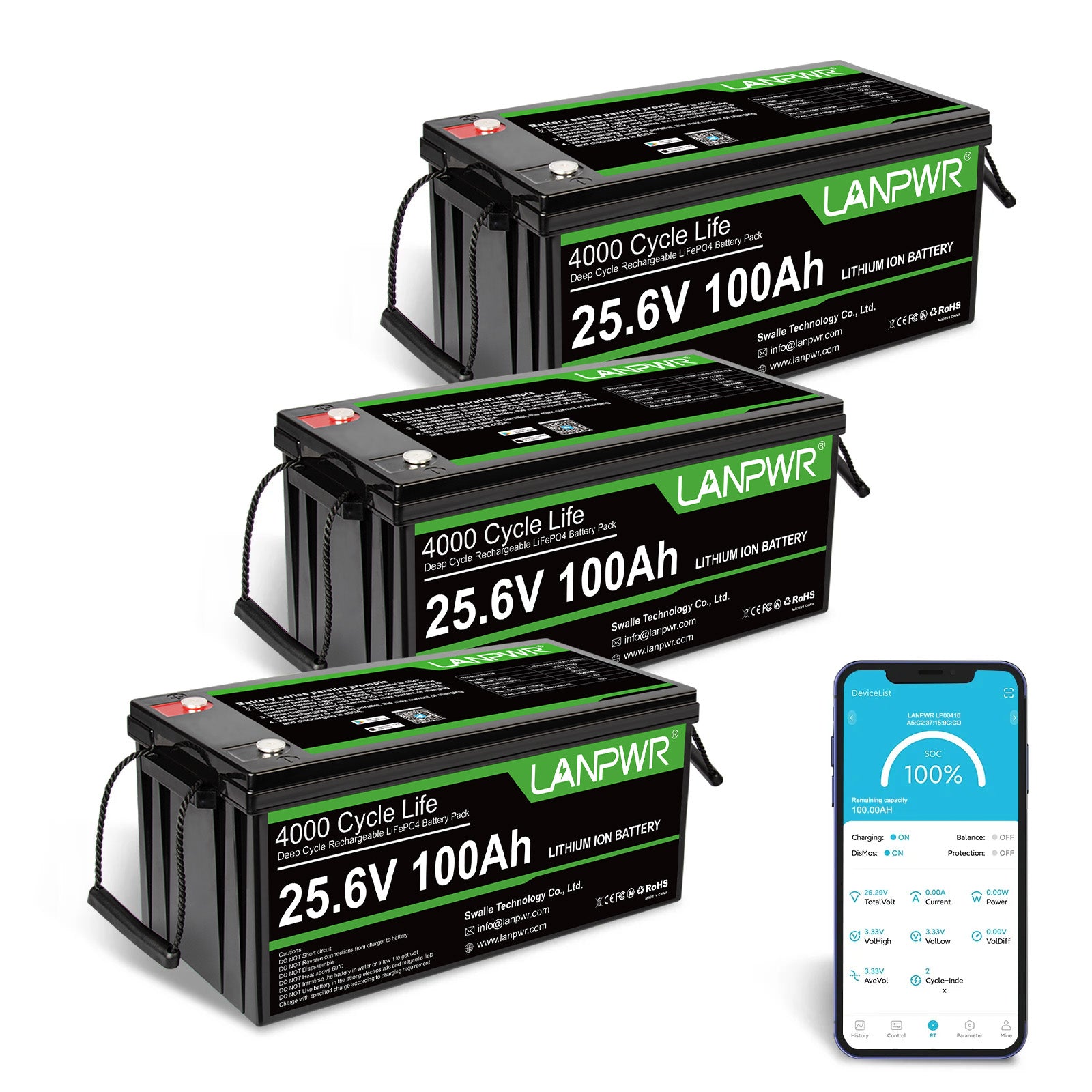

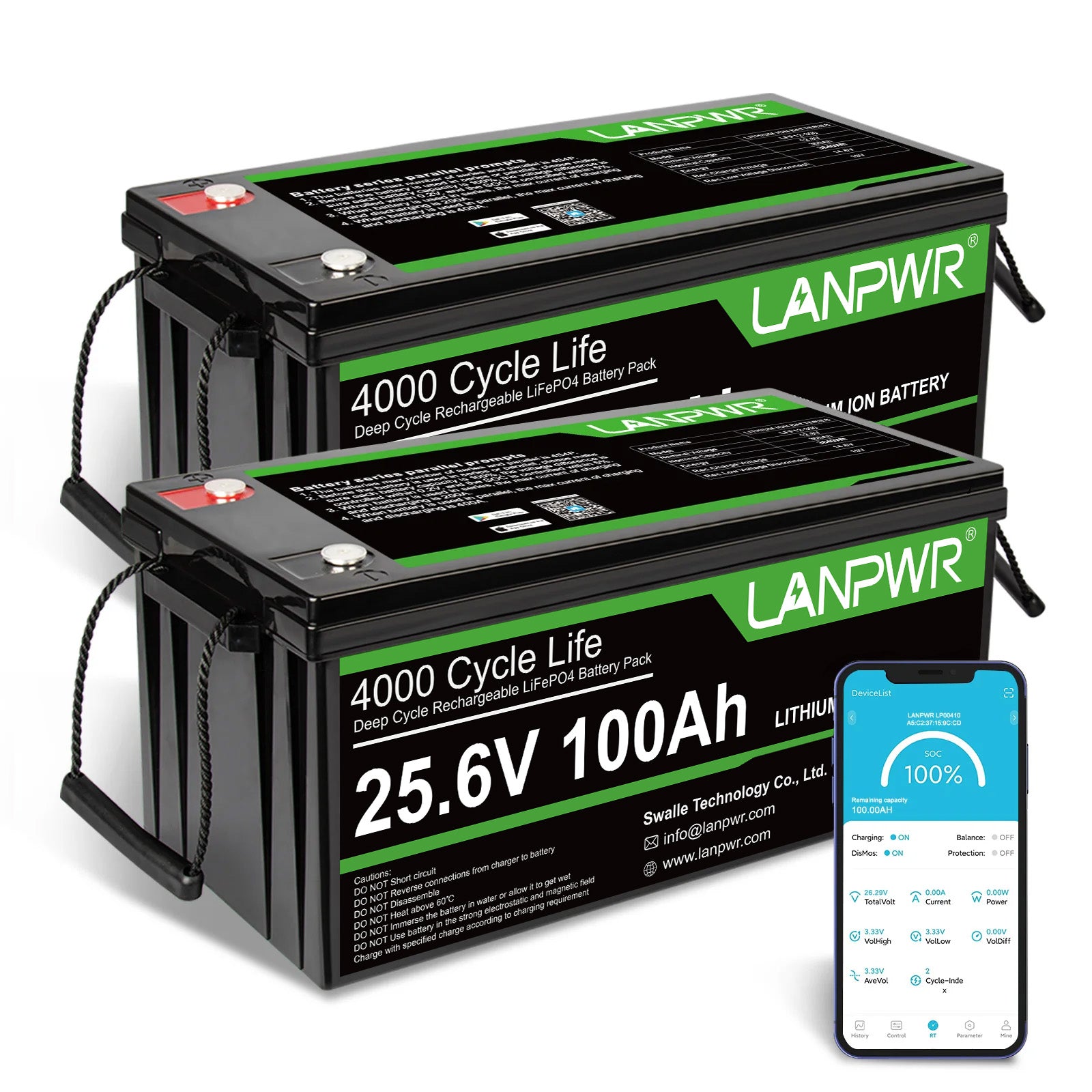

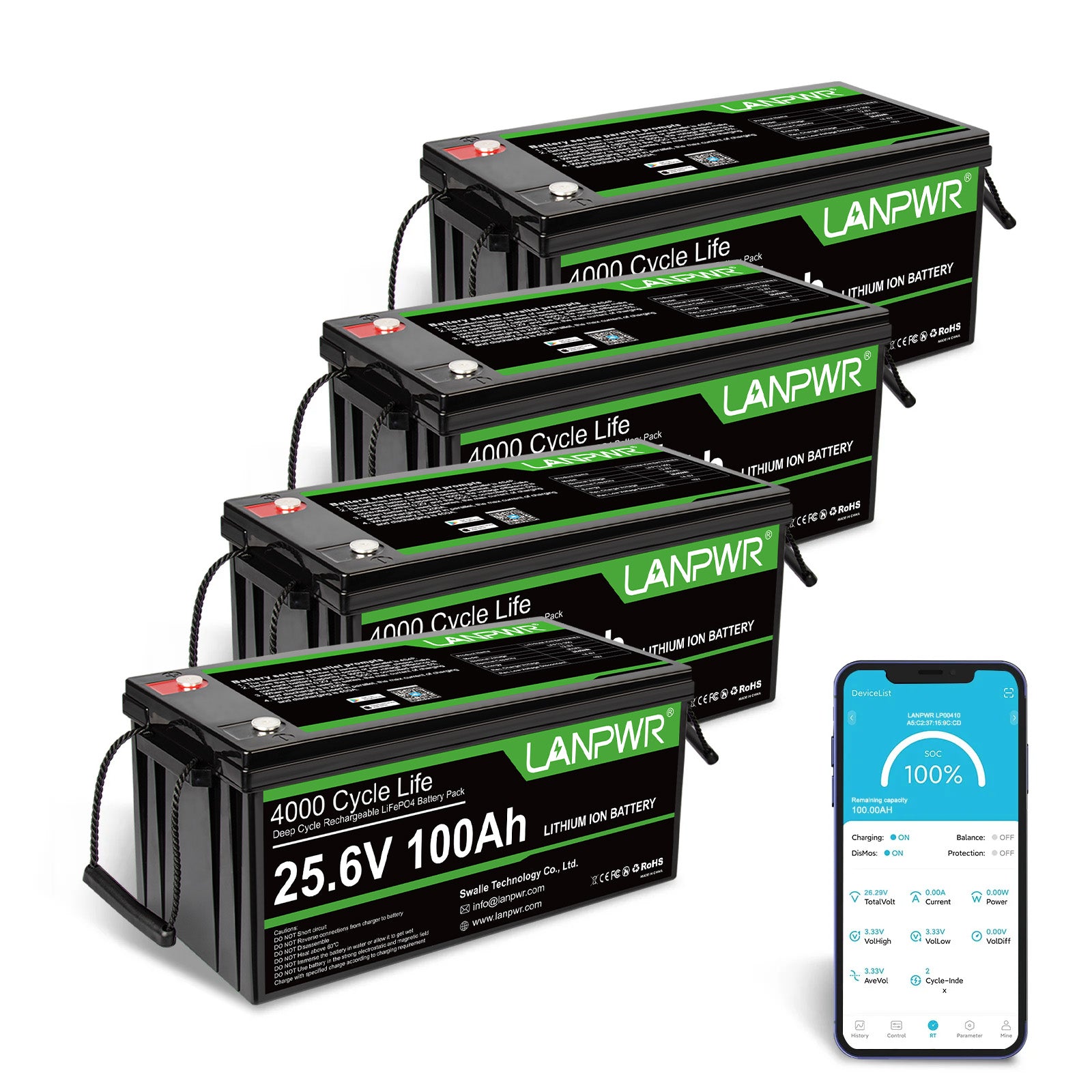

- Flexible in Series and Parallel (Up to 8 batteries, Max 2S4P, up to 20.48kWh)
- 2560Wh of high energy, 2560W of large output Power
- Low-temp cut-off protection secures your battery in cold weather

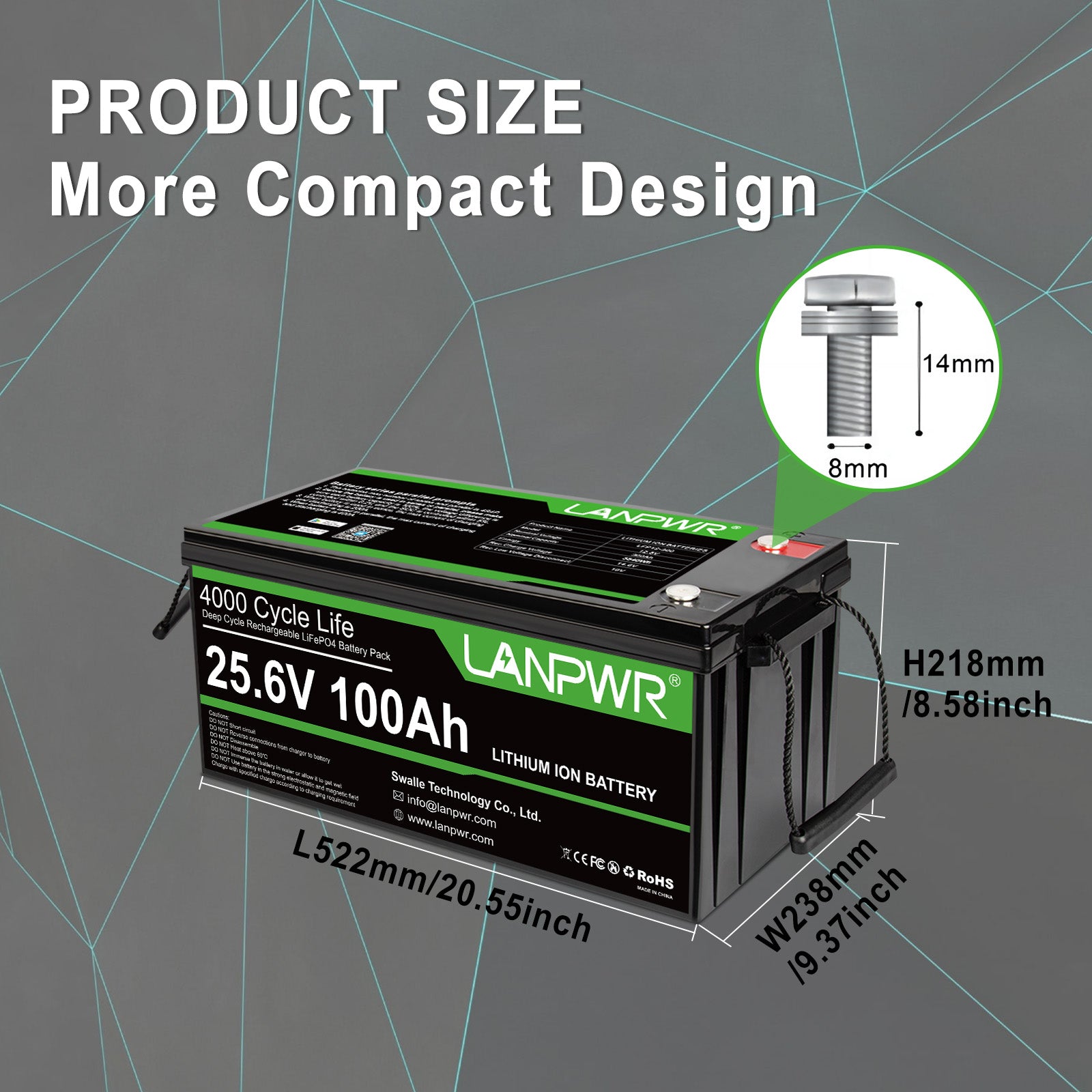

- Size: 522*238*218mm (L*W*H) & Weight: approx. 19.2kg
- DO NOT use as starter battery.
- DO NOT use it for golf carts or electric wheelchair/forklift, etc.
Description

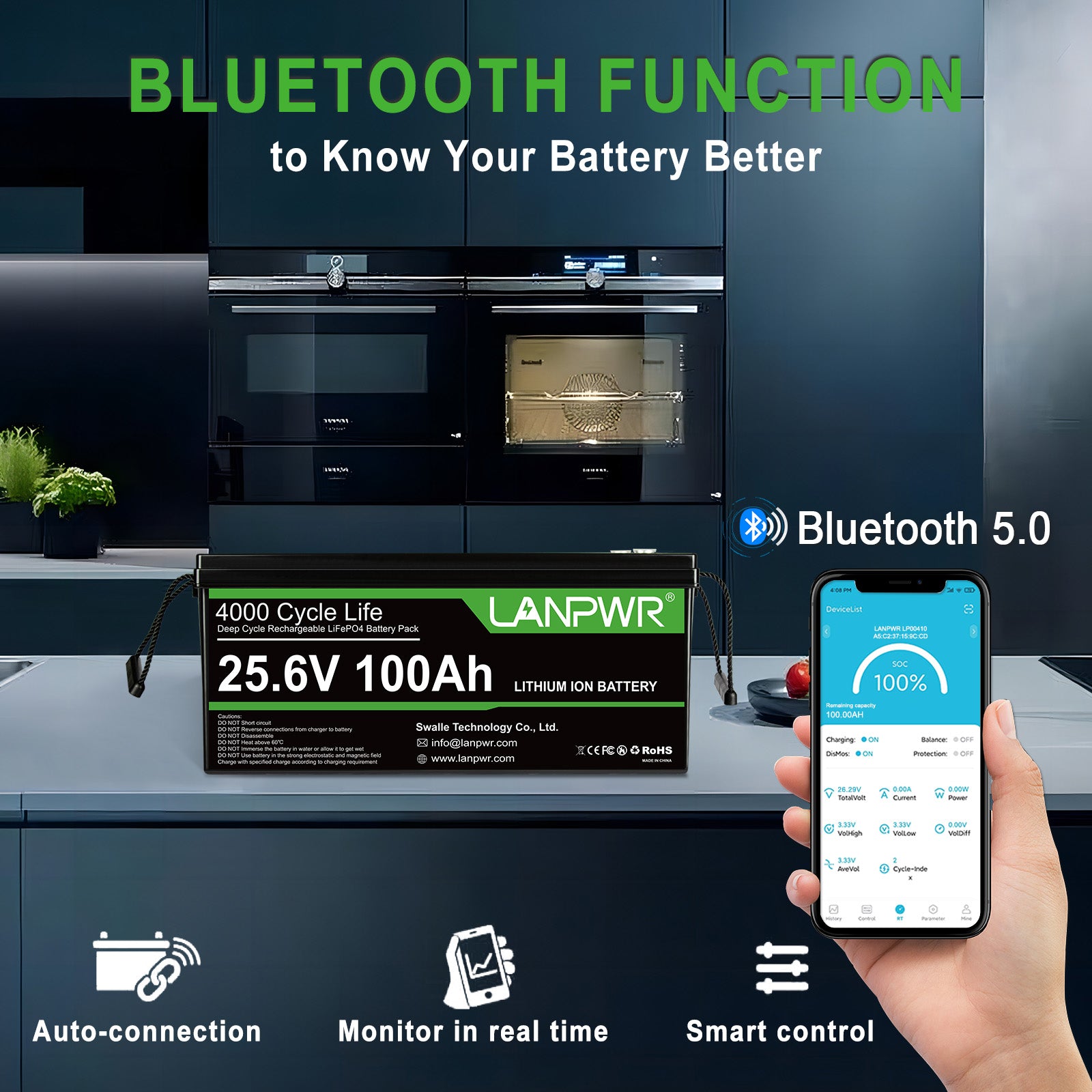

【Integrated Bluetooth, Real-Time Monitoring】Compared with traditional batteries, the LANPWR 24V 100Ah Bluetooth 5.0 LiFePO4 battery packs is equipped with Bluetooth function, and you can check the battery status such as battery voltage, current, battery capacity, and so on at any time through APP. Bluetooth connection range: within 10 meters of the battery.

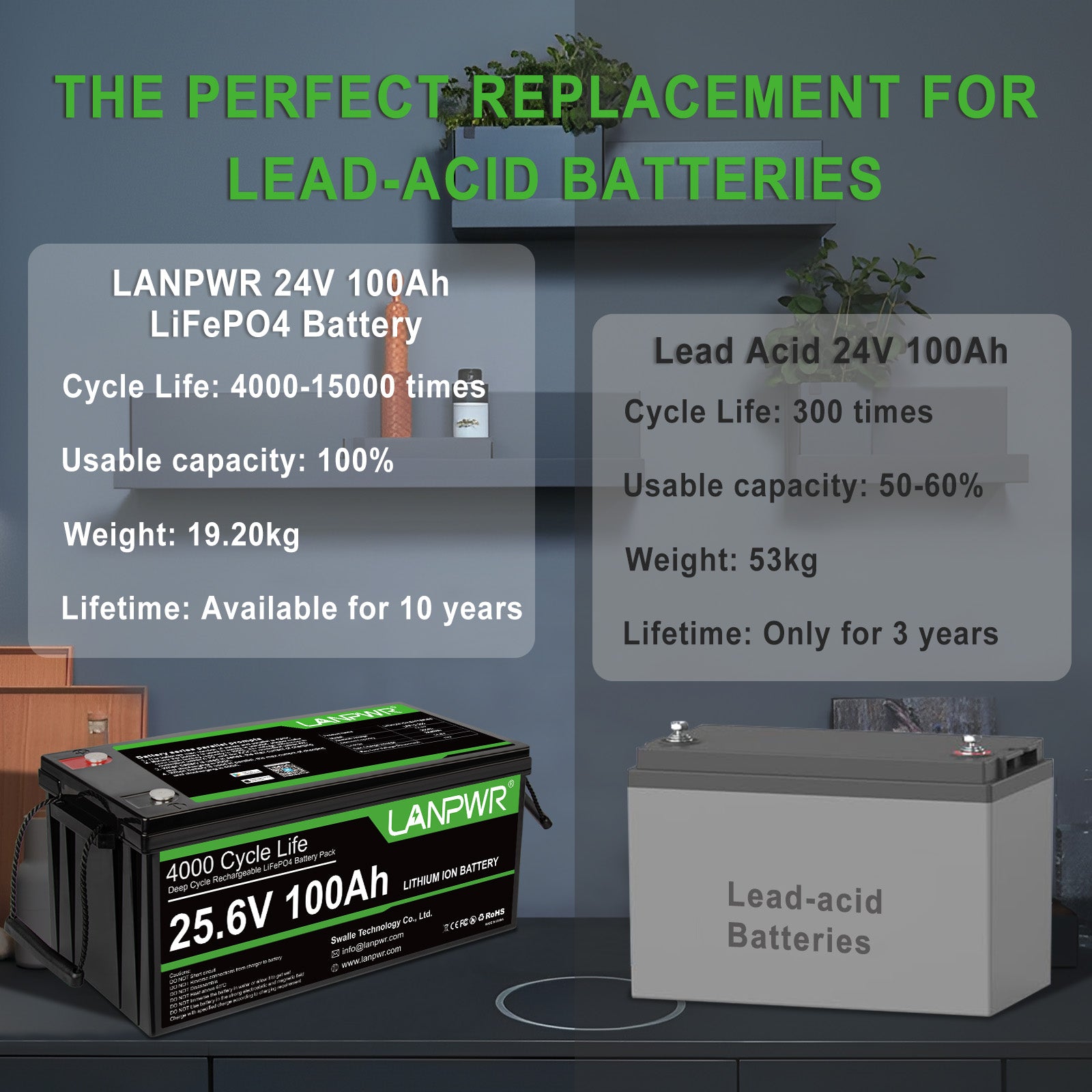

【Premium LiFePO4 Technology & 10-Year Lifespan】Experience superior quality with the Lanpwr 24V 100Ah lithium battery, featuring high-grade Automotive LiFePO4 Cells that offer increased energy density and consistent output. Surpassing SLA/AGM batteries, it boasts an impressive 10-year lifespan with over 4000 cycles at 100% DOD. UL tested for safety, it far outlasts the typical 200-500 cycles and 3-year life of SLA/AGM alternatives.

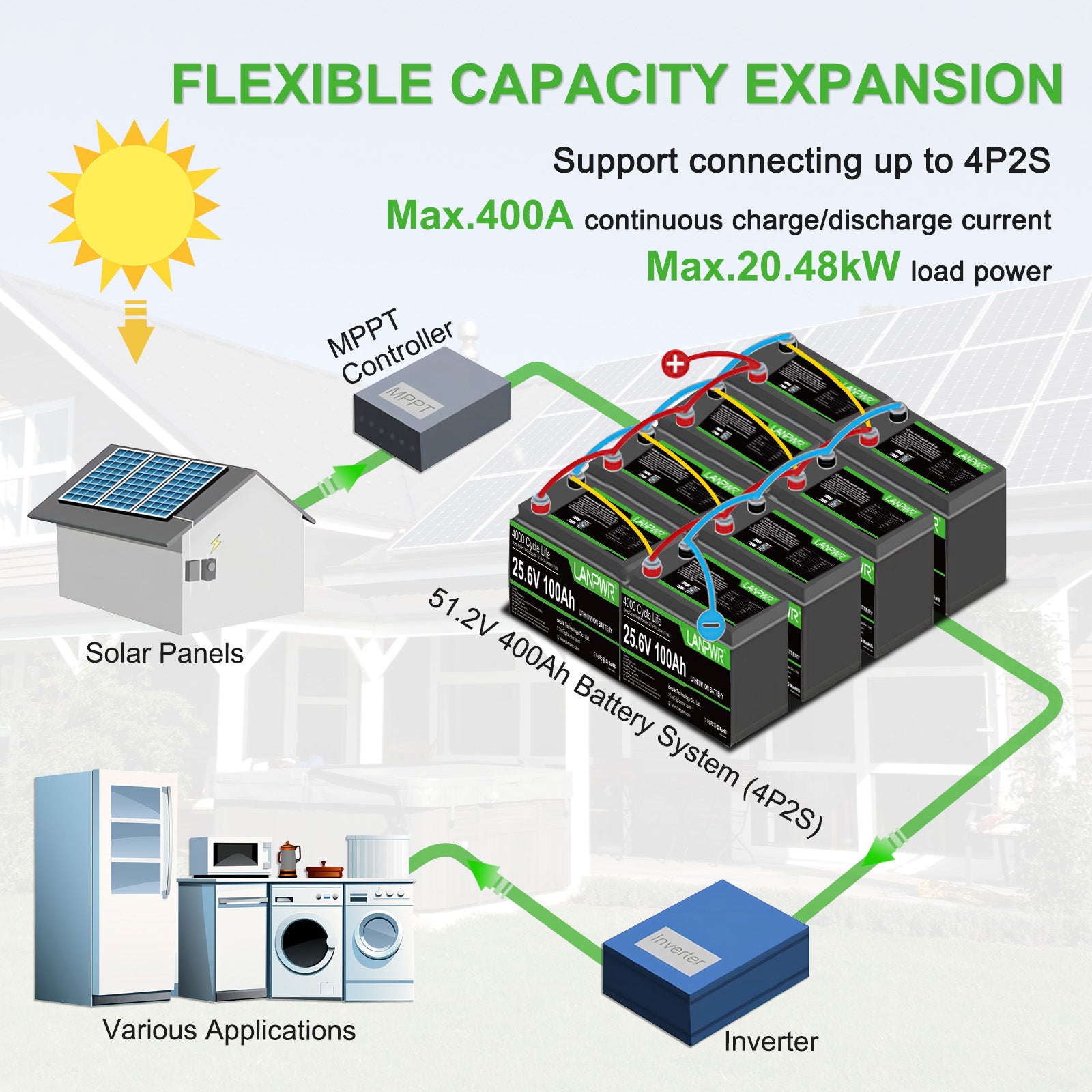

【Versatile and Expandable】The 24V 100Ah LiFePO4 battery supports configurations up to 2S4P, enabling a robust 48V 400Ah(51.2V 400Ah) system that delivers 20.48kWh energy and 20.48kW power. Ideal for RVs, solar installations, home energy storage, and off-grid applications, it offers versatile power solutions.
【Grade A LiFePO4 Cells & 100A BMS】Lanpwr 24V 100Ah batteries are manufactured by Automotive Grade A LiFePO4 cells with 100% 2560Wh energy, stable performance(2560W). Compared to a lead-acid battery, The A-grade cells provide superior performance and stability to the battery. They also have a built-in 100A BMS to protect the battery from overcharge, over temperature, over-discharge, over current, low temperature, and short circuit.
【Environmentally Friendly and Cost-Effective】The Lanpwr battery is eco-friendly, free from toxic lead, acid, or heavy metals, and demands less maintenance compared to SLA/AGM batteries. It also proves to be more cost-effective in the long run, offering an extended lifespan and higher efficiency. Make the switch to Lanpwr for a superior and sustainable energy solution.
【Multi-Application】Because lithium batteries can be simply and easily connected in series and parallel as you need, 24V 100AH LiFePO4 batteries are perfect for off-grid solar systems and outdoor applications such as home backup power, RVs, camping, sailboats, and more. Note: Recommended for a 24V trolling motor with 70~100lbs thrust.
*NOTE: Do not charge below 0℃. Do not use as a starter battery (e.g. for golf carts. If you need a starting battery, please contact the LANPWR team). When batteries are used in series or parallel, the voltage difference should be controlled within 0.2V and the SOC should be controlled within 5%.
Product specification
Cell Type:
Warranty:
Cycle Life:
Voltage:
Rated Capacity:
Energy:
Max. Expansion (Parallel & Series):
Internal Resistance:
Dimensions:
Certifications:
Grand A new LiFePO4
5 Years
≥4000 times
25.6V (Nominal Voltage: 24V)
100Ah
2560Wh
4P2S
≤15mΩ
522*238*218mm (L*W*H)
UL, FCC, CE, RoHS, UN38.3
BMS:
Max. Continuous Output Power:
Max. Continuous Charge Current:
Max. Continuous Discharge Current:
Max. Discharge Current 3 Second:
100A
2560W
100A
100A
110A
Charge Method:
Charge Voltage:
Recommend Charge Current:
Max. Charge Current:
Continuous discharge Current:
CC/CV
29.2V
20A
100A
100A

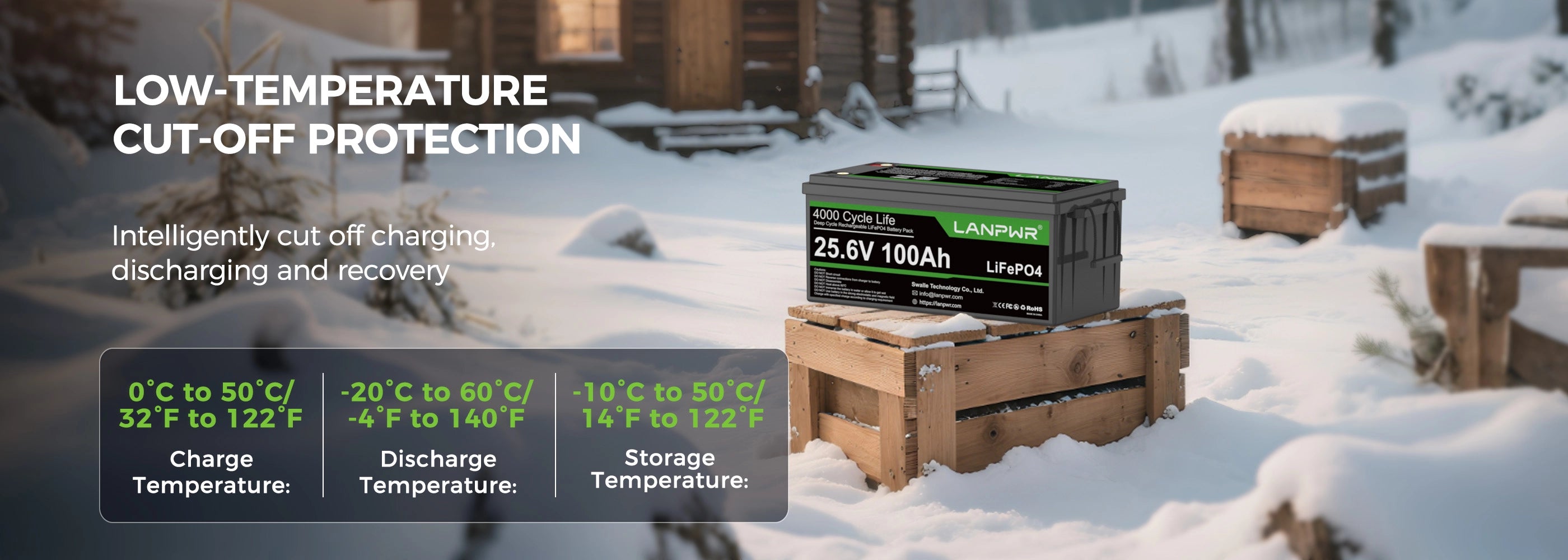

Charge Temperature:
Discharge Temperature:
Storage Temperature:
Low-Temperature Protection:
0℃ to 50℃ / 32℉ to 122℉
-20℃ to 60℃ / -4℉ to 140℉
-10℃ to 50℃ / 14℉ to 122℉
Yes (32℉/0℃)
FAQ
Q: How do I know if this battery is compatible with my existing setup?
A: The LANPWR 24V 100Ah lithium battery is designed to seamlessly integrate with a variety of systems, including RV setups, marine applications, trolling motors, and off-grid solar installations. With its 24V 100Ah rating and support for up to 2 batteries in series and 4 in parallel, it’s versatile enough to enhance your existing battery bank. To ensure compatibility, simply verify the voltage and power requirements of your device, and refer to the user manual or reach out to our customer support team for guidance on fitting it to your specific application.
Q: Can I use this battery for long-term storage without losing power?
A: Yes, the LANPWR 24V 100Ah battery’s built-in 100A BMS ensures a low self-discharge rate, making it ideal for long-term storage. For optimal results, store the battery at a partial charge (around 50-60%) in a cool, dry place. It’s also a good idea to check its status via the Bluetooth app every 3 months to ensure it’s ready when you need it.
Q: Can I charge this battery with a regular charger, or do I need a specific one?

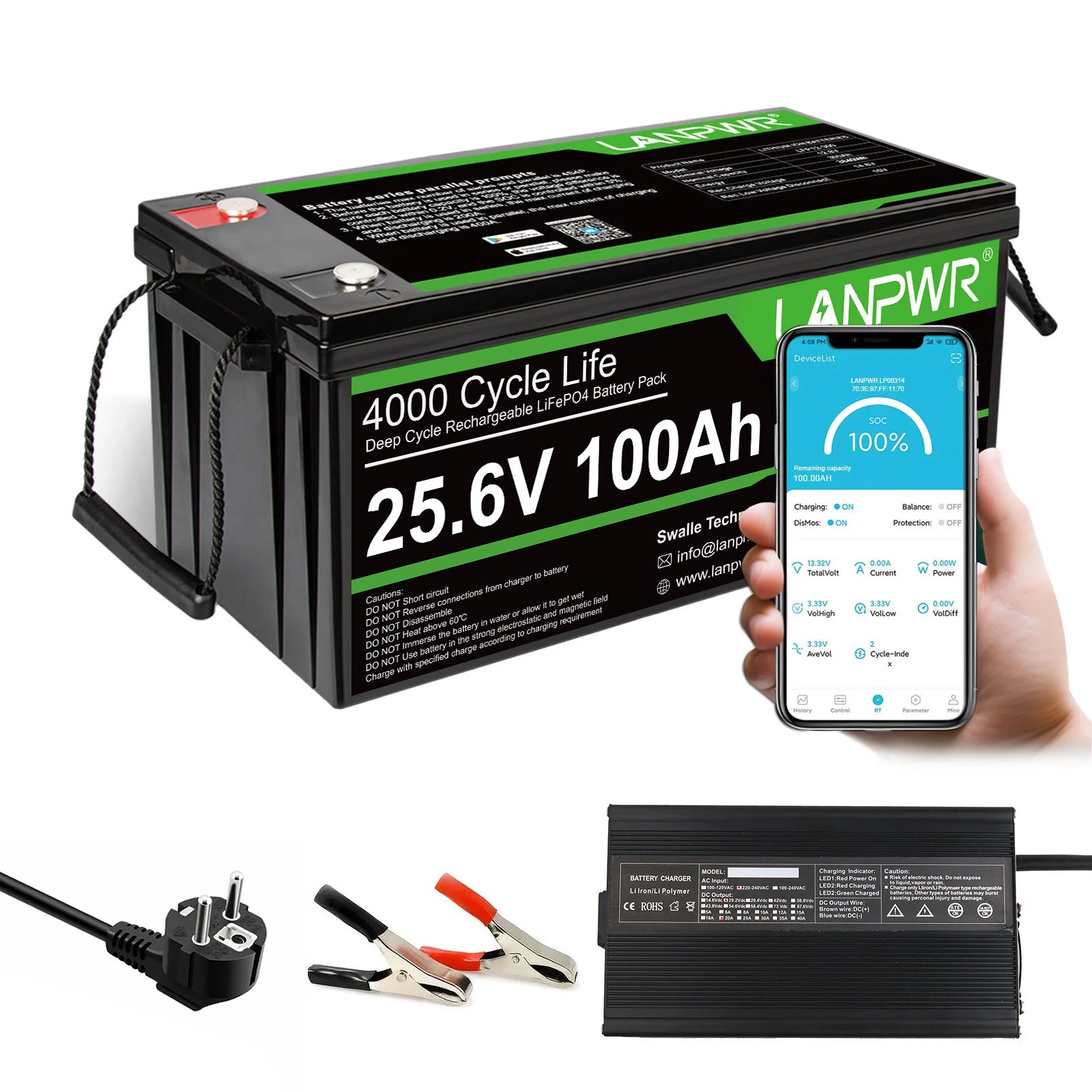

A: For optimal performance, it’s recommended to use a LiFePO4 charger (29.2V 20A) that is compatible with the LANPWR 24V battery.
Q: How many LANPWR 24V 100Ah lithium batteries can I connect at most?
A: Our LANPWR 24V batteries can be connected in series, parallel, or a combination of both to create a larger, more powerful battery bank suited to your needs.
How the Connections Work:
- Series Connections: Increase the voltage of the battery system.
- Parallel Connections: Increase the capacity (Amp-Hours), allowing longer runtime.
Maximum Configurations:
- Series Connection: You can connect up to 2 identical batteries to create a 48V system.
- Parallel Connection: You can connect up to 4 identical batteries for increased capacity.
- Series-Parallel Configuration: You can connect up to 8 identical batteries (2 in series and 4 in parallel) for a high-capacity 48V system.
Important Safety Tip:
For optimal performance and safety, ensure all batteries in your bank are the same model, capacity, and have balanced voltage before connecting them.
Q: What size of trolling motor suits a 24V 100Ah lithium battery?
A: 70 ~ 100 lb
Q: What happens if I forget to charge the battery during cold weather?
A: No need to worry – the LANPWR LiFePO4 lithium battery is designed with effective low-temperature protection. If the temperature drops below 32°F (0°C), charging automatically stops to prevent potential damage. Once the battery is connected to a charger with sufficient current, it will safely resume charging as the temperature improves. This feature ensures your LANPWR LiFePO4 battery remains safe and functional, even in colder conditions.
Q: Is it safe to use in extreme temperatures or humid conditions?
A: Yes, the LANPWR 24V 100Ah battery comes with an IP65 waterproof rating, providing protection against dust and water splashes. This makes it an ideal option for marine environments, trolling motors, and outdoor RV setups. However, it's important to note that the battery should not be submerged or exposed to heavy rain for long periods to ensure its durability.
Additionally, the LANPWR 24V 100Ah battery is equipped with a built-in 100A Battery Management System (BMS) and offers low-temperature protection. The battery supports discharge temperatures from -20°C to 60°C and charge temperatures from 0°C to 50°C, making it suitable for various environments and weather conditions. This versatility ensures the battery performs reliably, even in harsh climates.
Q: How long will a 24V 100Ah battery last, and what is its lifespan?
A: Assuming you are using a 29.2V 20A LiFePO4 battery charger to charge a LANPWR 24V 100Ah solar battery, it will take approximately 5 hours to charge the battery from 0% to 100%.
For all LANPWR LiFePO4 batteries with a capacity above 50Ah, a 5-year warranty is provided. The expected battery lifespan is 10 years, and the cycle count can range from 4,000 to 15,000 cycles, significantly outperforming lead-acid batteries, which typically last only 300 to 500 cycles.
LANPWR is your top choice for high-performance energy storage solutions!
Q: How long does it take to charge a 24V 100Ah battery, and how many solar panels are needed?
A: Certainly! If you use an 800W solar panel to charge the LANPWR 24V 100Ah solar battery from 0% to 100%, it should be fully charged in about one day with 4.5 hours of effective sunlight. To ensure optimal charging performance, it's essential to use a suitable solar charge controller that is compatible with the LiFePO4 battery to manage the charging process correctly.
Q: How do I monitor the battery status, and what should I do if the Bluetooth connection stops working?
A: If you're having trouble connecting to your battery via Bluetooth, make sure Bluetooth is enabled on your phone and that you're within range of the device. If the connection issue persists, try restarting the Xiaoxiang Electric App or reinstall it from the App Store or Google Play, using the QR code in the manual. If you're still unable to connect, please reach out to the LANPWR support team for assistance, as the issue may require a firmware update.
Q: What type of maintenance does this battery require?
A: LiFePO4 batteries are mostly maintenance-free, offering a hassle-free experience compared to traditional lead-acid batteries. Here’s what you need to do to keep it in good shape:
1. Charge Between 20% and 80%
- Try to keep the battery’s charge between 20% and 80%. This helps extend its lifespan.
2. Store with 50% Charge
- If storing for a long time, charge it to 50% to avoid over-discharge or overcharging.
3. Store in a Cool Place
- Keep the battery in a temperature range of 10°C to 45°C (50°F to 113°F). Avoid extreme heat or cold.
4. Check Terminals
- Periodically check the terminals to ensure they are clean and securely connected.
5. Avoid Extreme Conditions
- Avoid exposing the battery to very high or low temperatures to prevent damage.
In Summary:
LiFePO4 batteries need minimal maintenance. Just keep them properly charged, store them in a cool place, and avoid extreme conditions for long-lasting performance.
Q: How long will it take to expand my battery system, and do I need special tools?
A: Expanding your system to create a 51.2V 800Ah battery bank with the 4P2S configuration is quick and simple. No special tools are needed—just connect additional LANPWR 200Ah batteries using the provided cables and follow the manual’s wiring diagram. The setup should take around 1-2 hours, depending on your system size. For any assistance, LANPWR customer support is available to guide you through the process.
