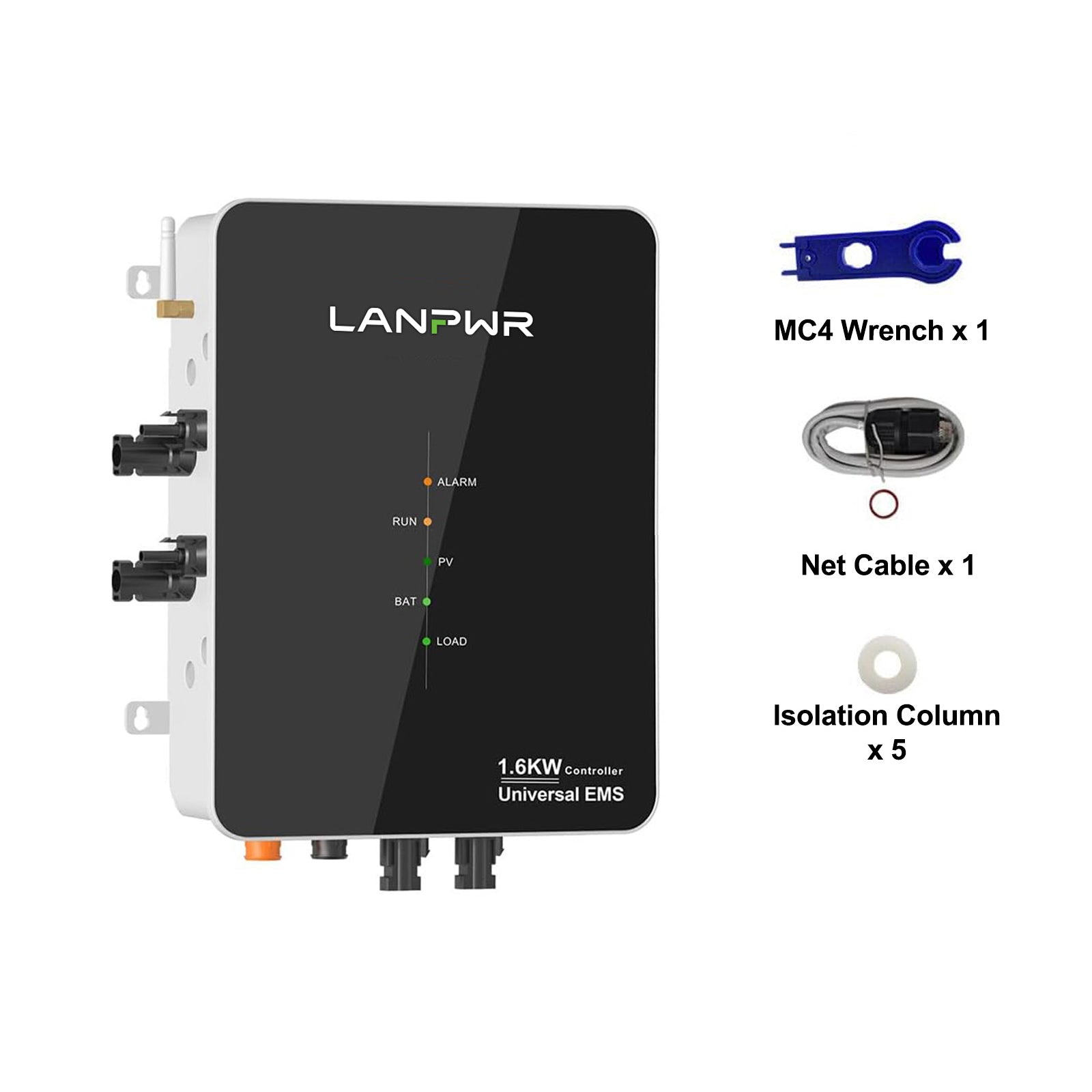

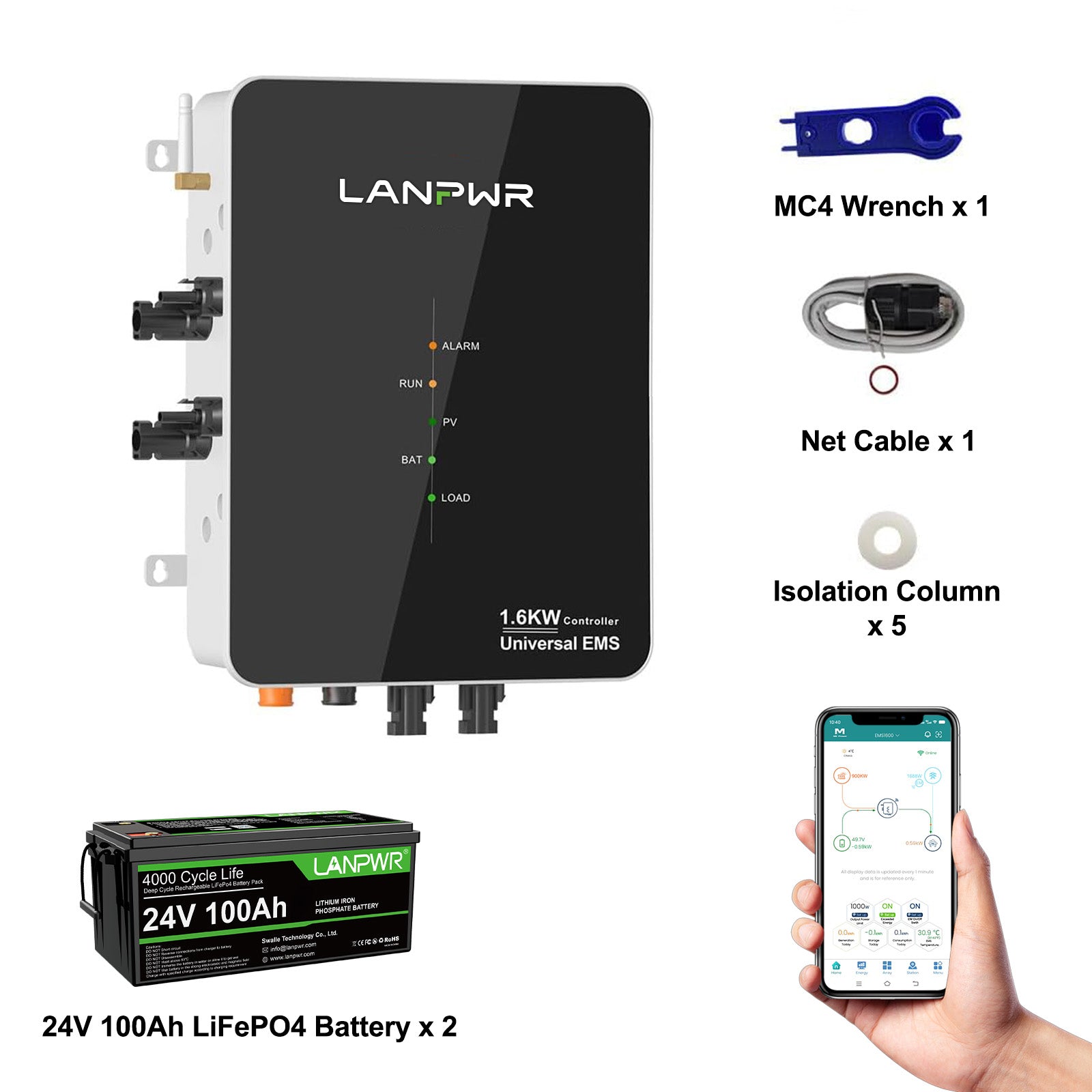

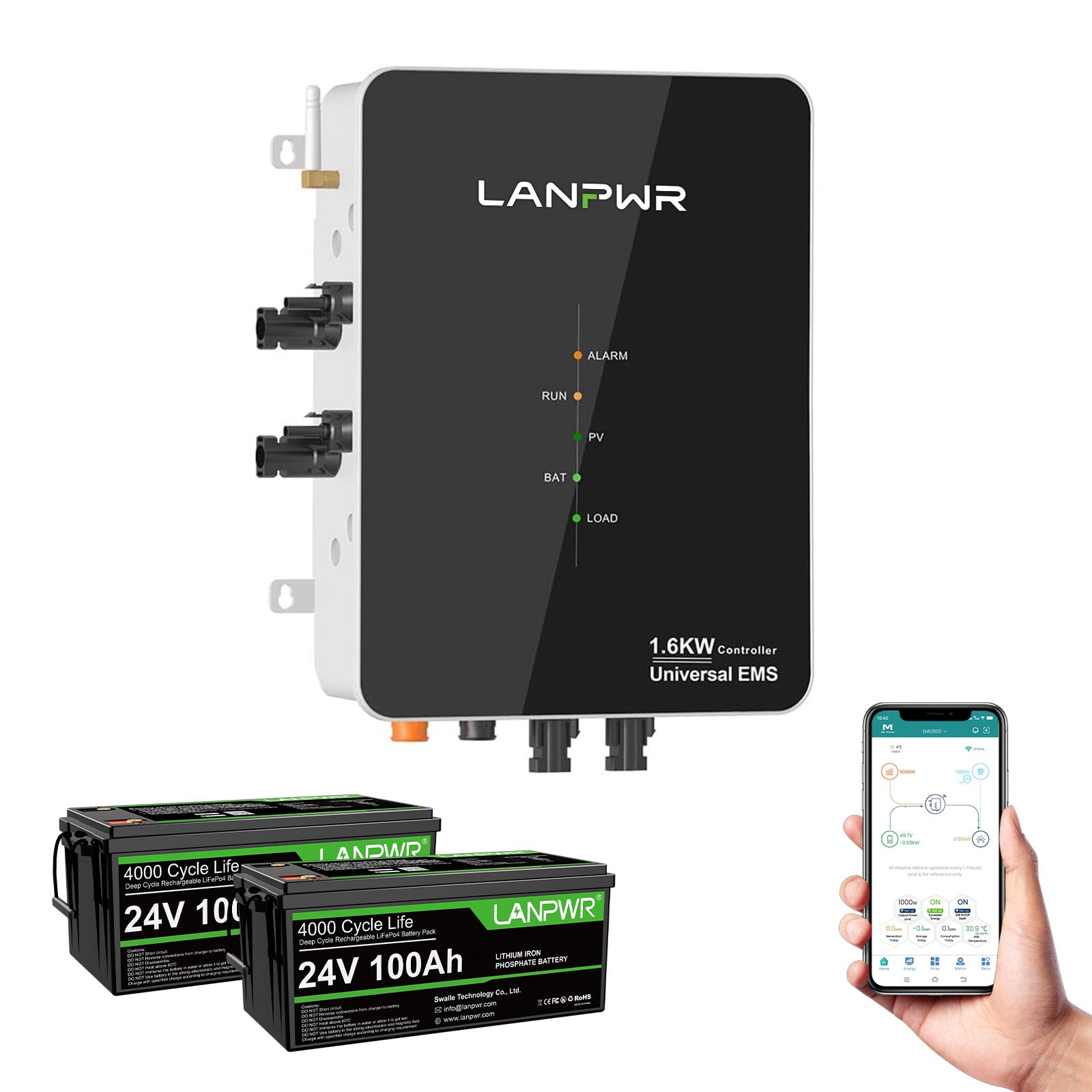

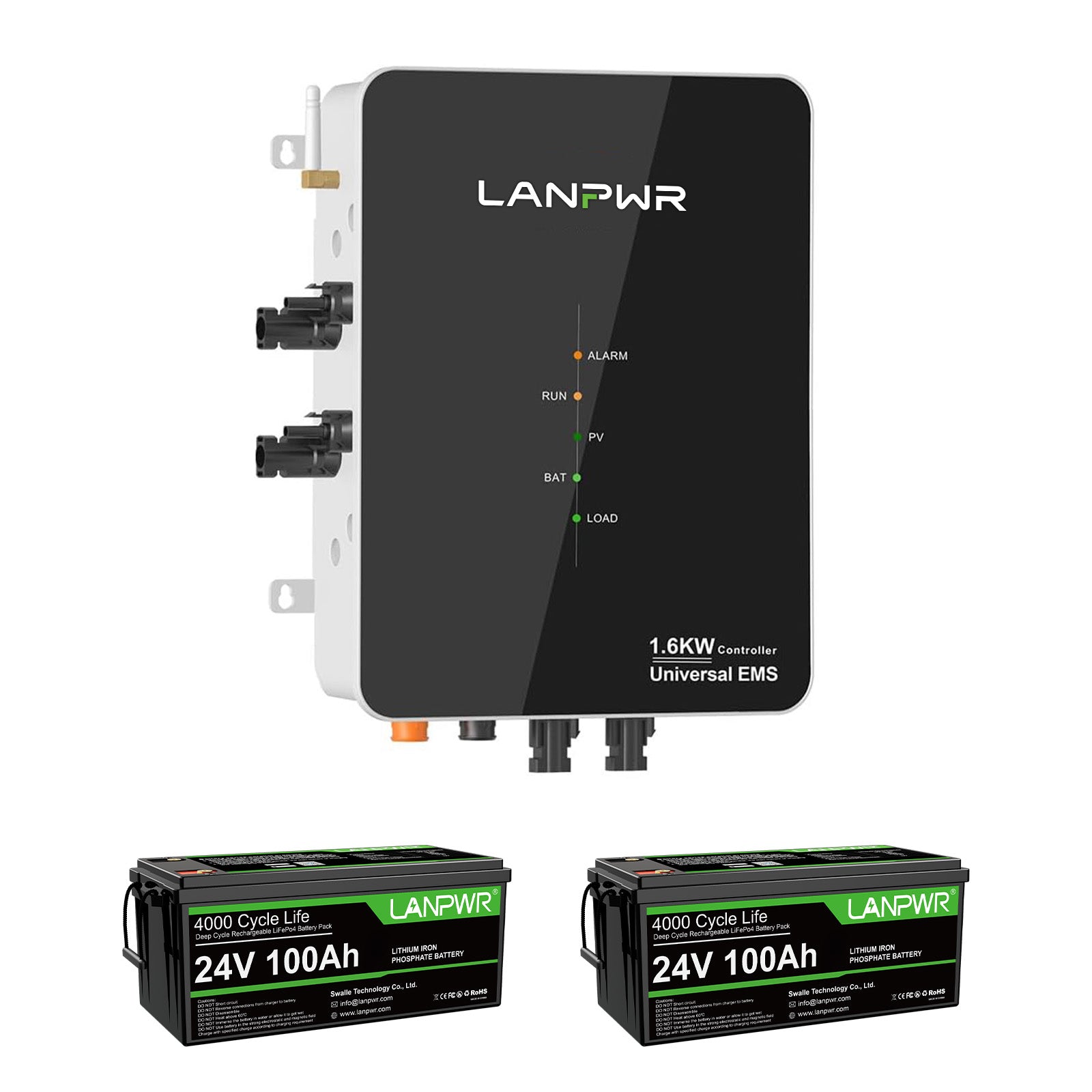

LANPWR Smart Solar Universal EMS Controller

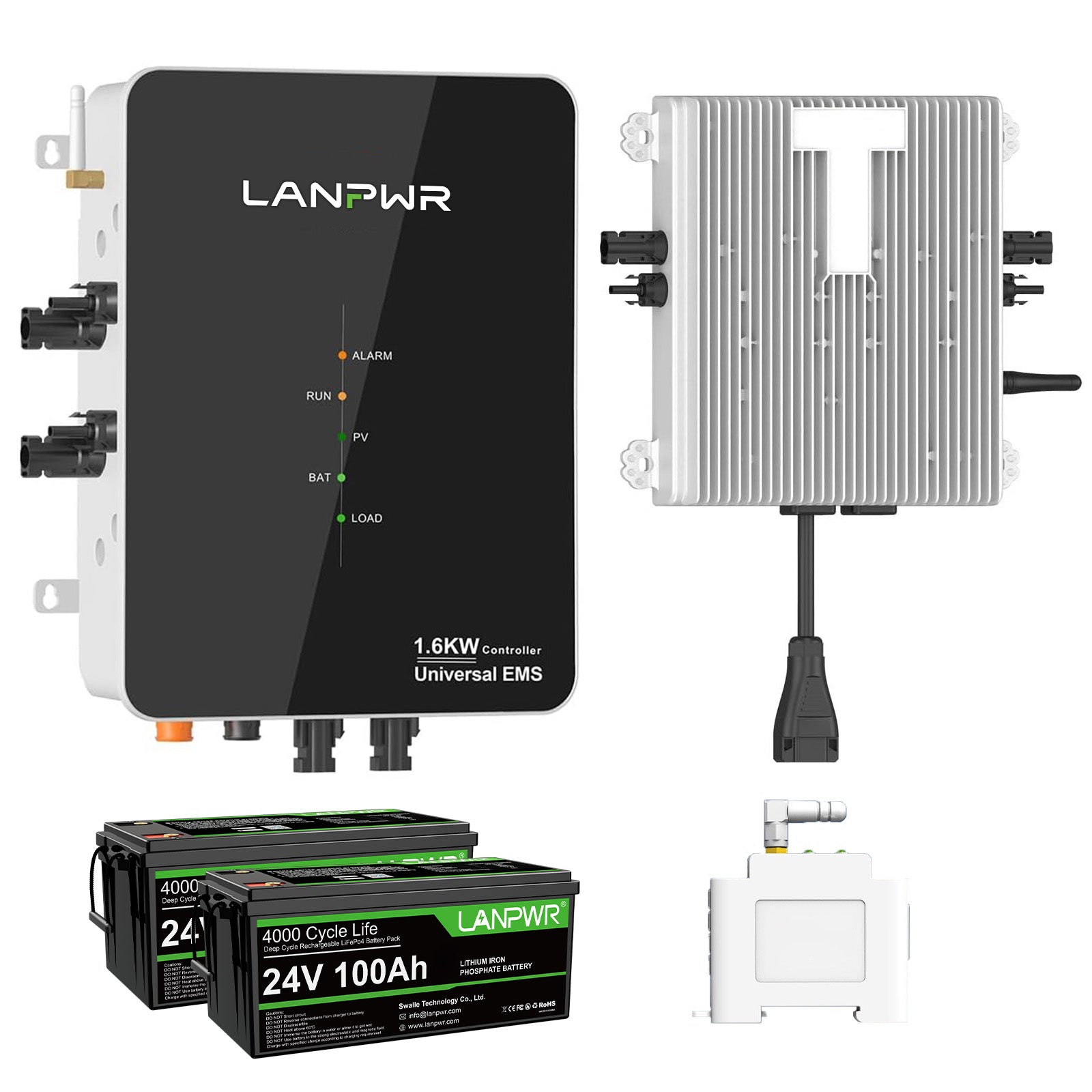

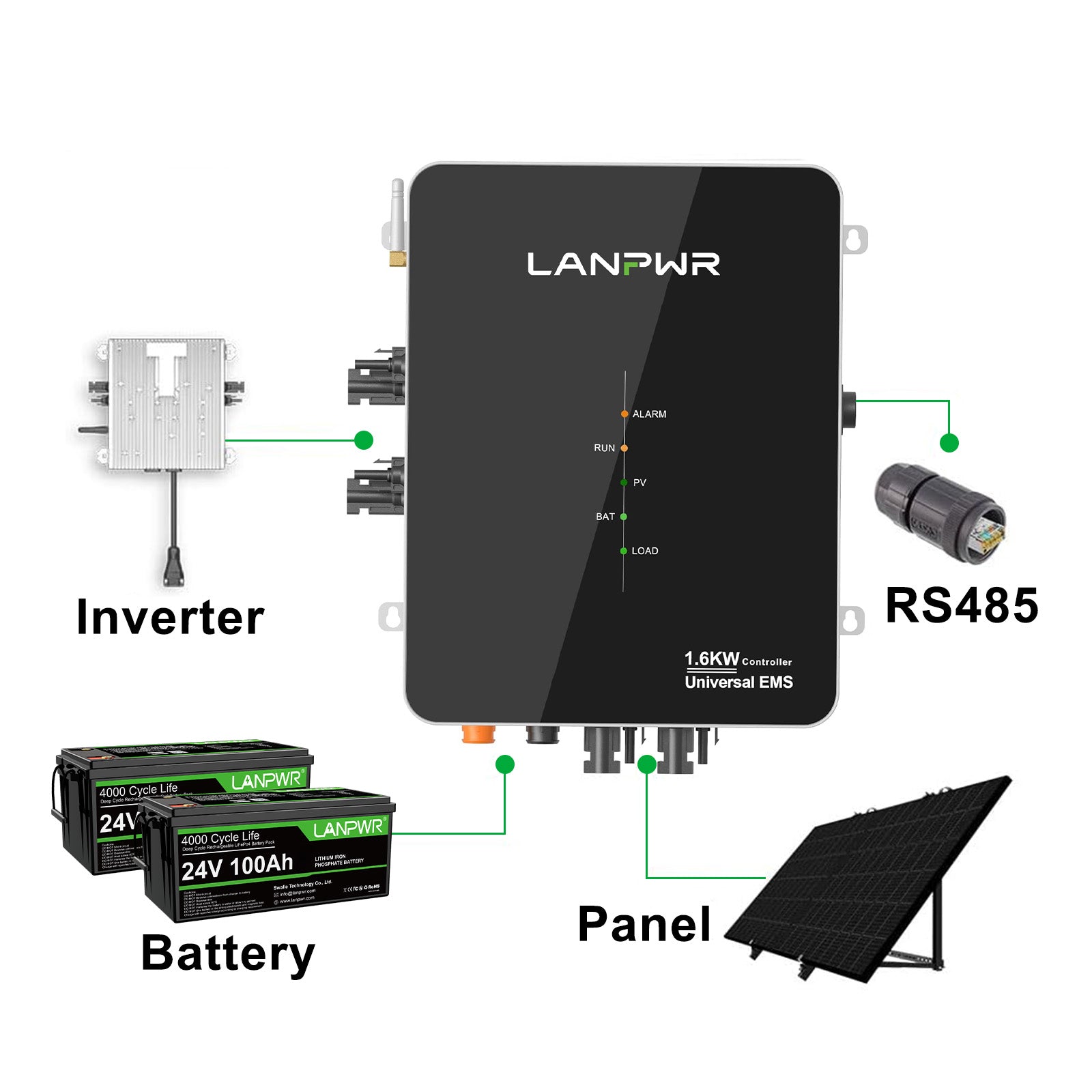

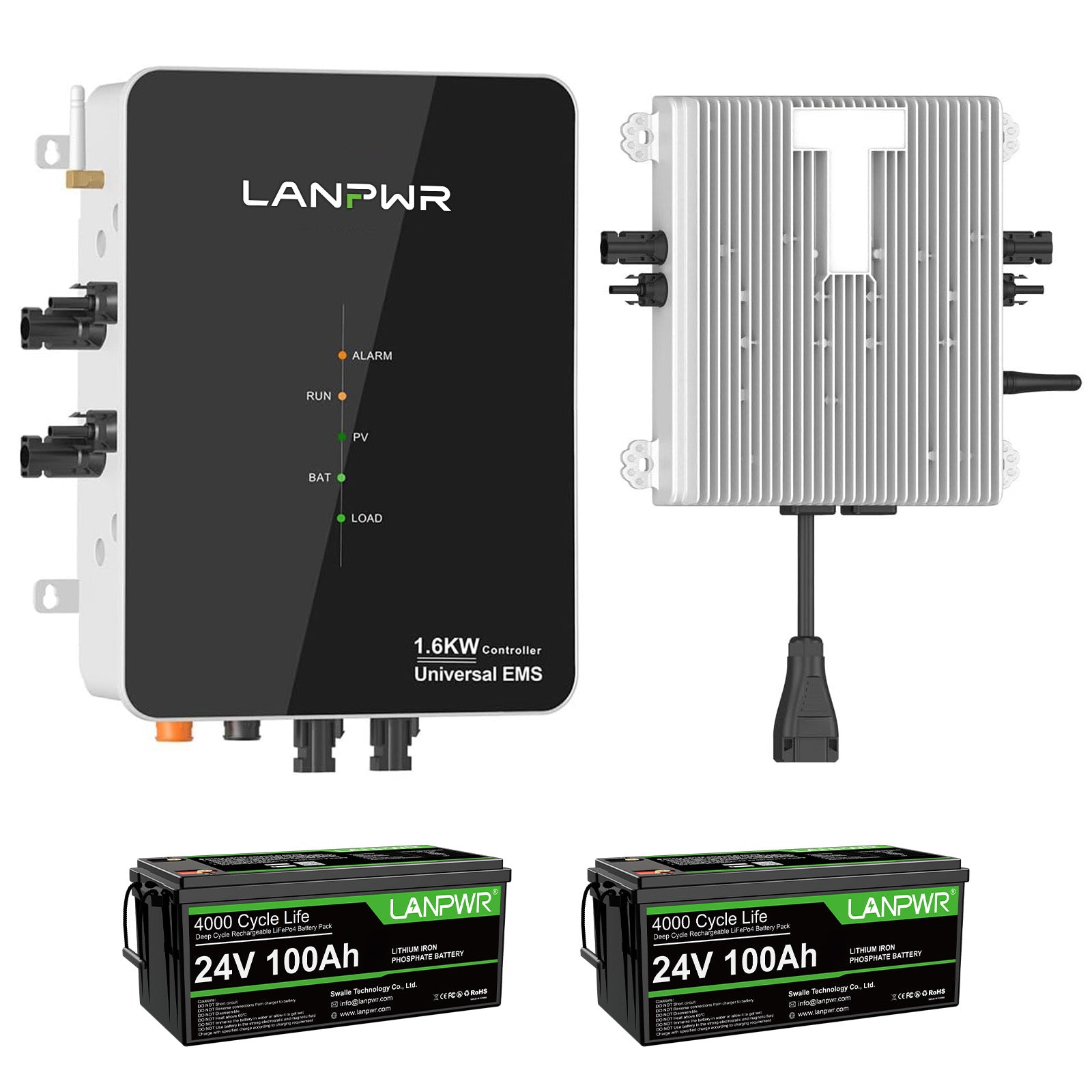

Universal EMS Controller Highlight: Coupled with on-grid micro inverter and 48V/51.2V battery, EMS controller can function as a balcony power generation system with battery storage.
Automatically control the output of the microinverter based on real-time power consumption.
· The best combination of balcony energy storage system
· Matches 90%+ brand microinverter.
· Zero feed in to the grid.
· No battery type limitation.
· Charge and discharge simultaneously.
· 0-1600W inverter output power adjustable.

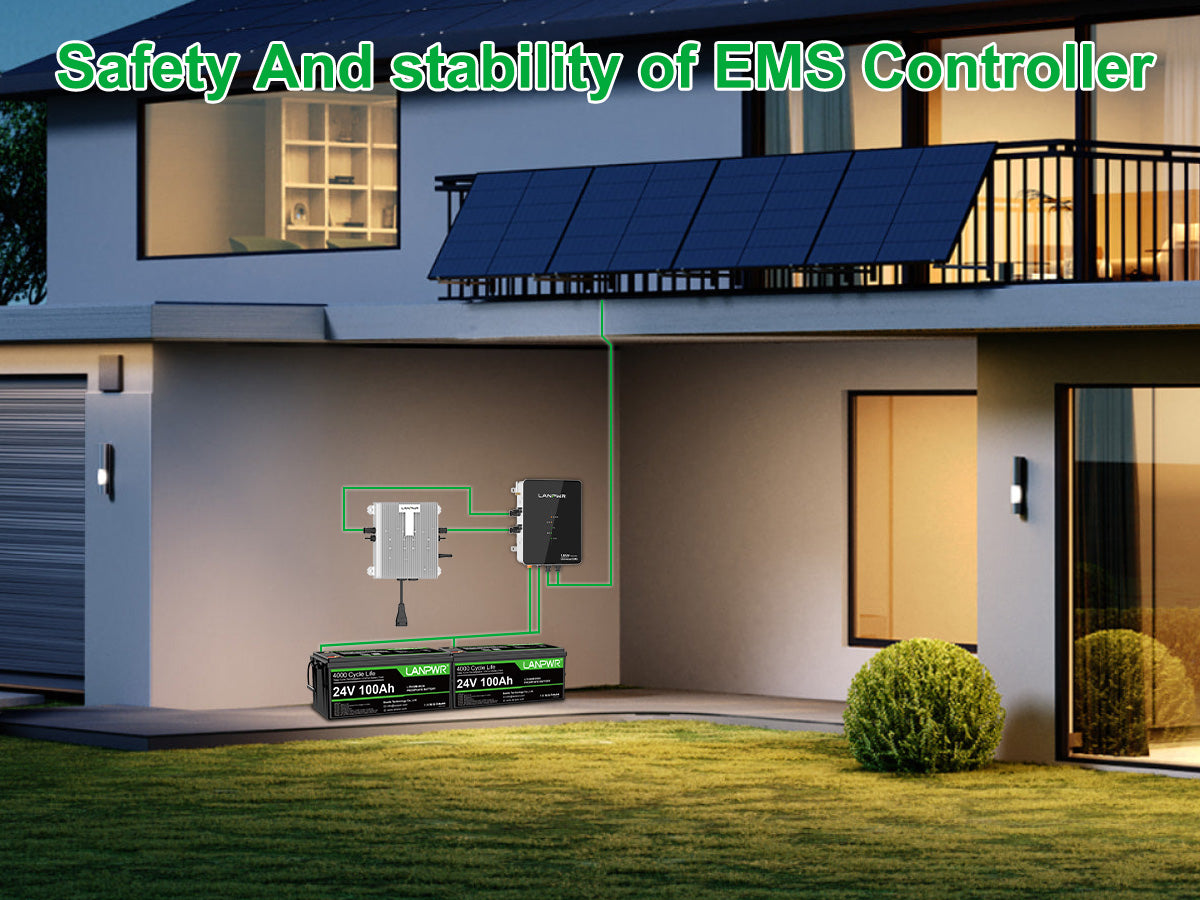

The Best Combination of Balcony Power Generation System
The LANPWR Universal EMS Controller is designed to accurately simulate the voltage-current curve of solar panels. It can manually or automatically regulate the output power of most microinverters from various brands, ensuring efficient integration with the main grid based on real-time energy consumption. Additionally, it allows customers to store excess solar energy in a battery, achieving up to 90% self-consumption.
Safer, no fire hazard
Aluminium magnesium alloy body, sealed with high thermal conductivity sealant, efficient heat dissipation, quiet operation. Maximum current 20amp/channel, plug-in design, no risk of fire caused by line overcharging or cable short circuit.
Without safety and stability, all functions are just decorations!
· Dual output, single channel limited to 20A and 800W, safe and stable, eliminate fire hazards!
· Widely compatible with 90% of microinverters
· Truly intelligent MPPT, conversion efficiency≥97%
· Intelligent charging control, effectively protects the battery and extends its lifespar
· Support 0 feed in to the grid
· Supports simultaneous charging and discharging, zero waiting!
· Built in intelligent MCU, plug and play, no need complicated settings
· APP remote monitoring and management
· Automatically and dynamically adjust output power (requires coordination with EM meter)
· Support automatic adjustment of output power during 3 time periods
· Efficient compatibility with various 48V (51.2V) batteries
· Supports lP65 waterproof and dustproof
· Quiet operation Efficient heat dissipation
Smart Energy Management System
Integrated dual MPPT, microinverter output, 48V charging and intelligent energy management system. Intelligently identifies different brands of micro inverters and energy storage batteries and eliminates complex settings.
Product Specification
Number of MPPT Trackers
Max. PV Array Power
MPPT Operating Voltage Range
MPPT Tracking Efficiency
Conversion Efficiency
Battery Standard Voltage Range
Battery Type
DC Output Power
DC Output Port
DC Output Voltage Range
DC Output Max. Current
DC Output Max. Power
2
2 x 1 Tracker 800W
25-50V
99%
95%
Standard 48V(51.2V)
Lithium, AGM, Gel, ect.
Controlled by APP
2(Independent)
20~50V
2*25A
1600W
Cell Type
Cycle Life
Voltage
Rated Capacity
Energy
Charge Voltage
Max. Charge Current
Continuous discharge Current
Operating Temperature Range
Dimensions
Warranty
LiFePO₄
≥4000 times
25.6V (Nominal Voltage: 24V)
100Ah
2560Wh
29.2V
100A
100A
-20℃ to 60℃
522*238*218mm (L*W*H)
5 Years
Number of MPPT Trackers
Max. Input DC Voltage
MPPT Operating Voltage Range
Startup Voltage
DC Port Backfeed Current
PV Array Requirement
Max. Continuous Output Power
Power Factor(Adjustable)
CEC Weighted Efficiency
Peak Inverter Efficiency
Communication
Enclosure Rating
Operating Ambient Temperature Range
Dimensions
Warranty
2
60V
25~50V
20V
0 A
2x1 Ungrounded array; No Additional PV side protection required
800W
>0.99 Default, 0.8 Leading...0.8 Lagging...
95%
96.50%
WiFi
IP65
-40 °C to +65 °C(-40 huasheshid°F to +149 ° F )
218*245*42mm
3 Years(Except for vulnerable structural parts (such as terminal blocks, panels, external wiring materials, etc.)
Power in
CT Provided
Operating Temperature
Frequency
3~100/173-240/415V, 50/60Hz, 1W
50A
-20 °C to +55 °C
WiFi(2412 - 2484 Mhz)
Peak Power
Open Circuit Voltage
Peak Voltage
Peak Current
Short Circuit Power
Cell Conversion Efficiency
Dimensions
180W±5%
36.96V±5%
30.8V±5%
5.84A±5%
6.42A±5%
22%±1%
1262*710*17mm
