A:
Compatibility depends on your vehicle's system voltage and controller power rating rather than the brand alone. This battery is compatible if your vehicle meets the following 3 conditions:
1. System Voltage: Must be a 48V system (not compatible with 36V or 72V systems without modification).

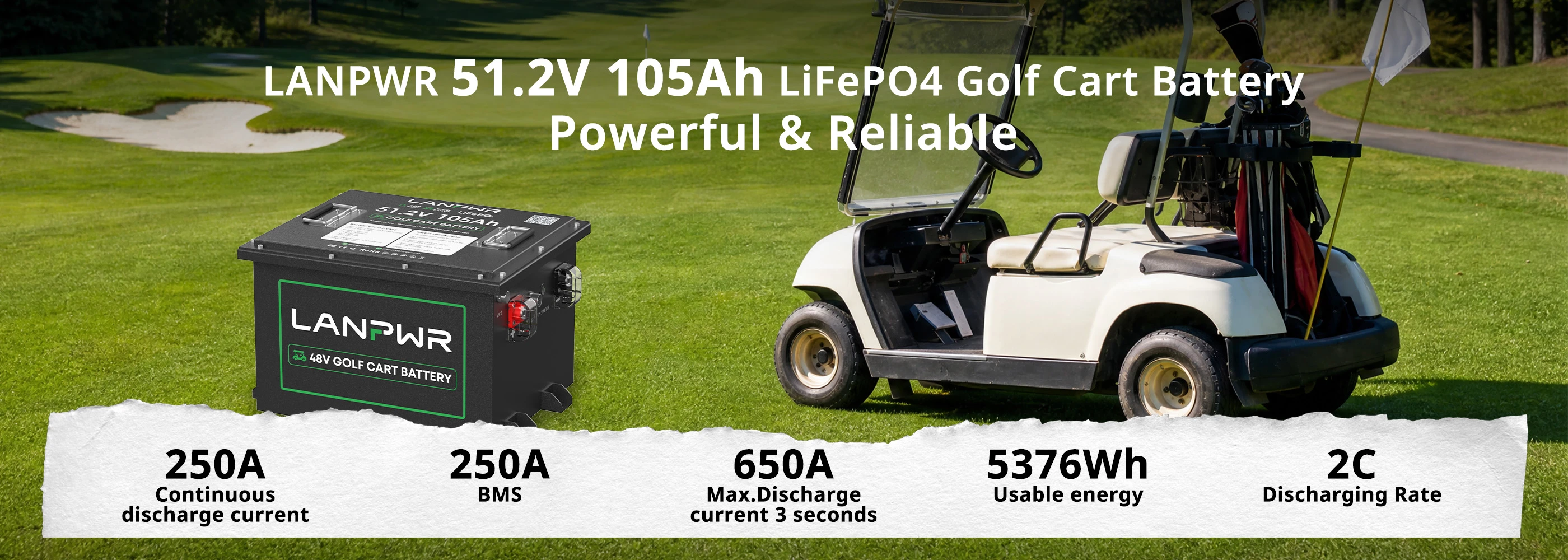

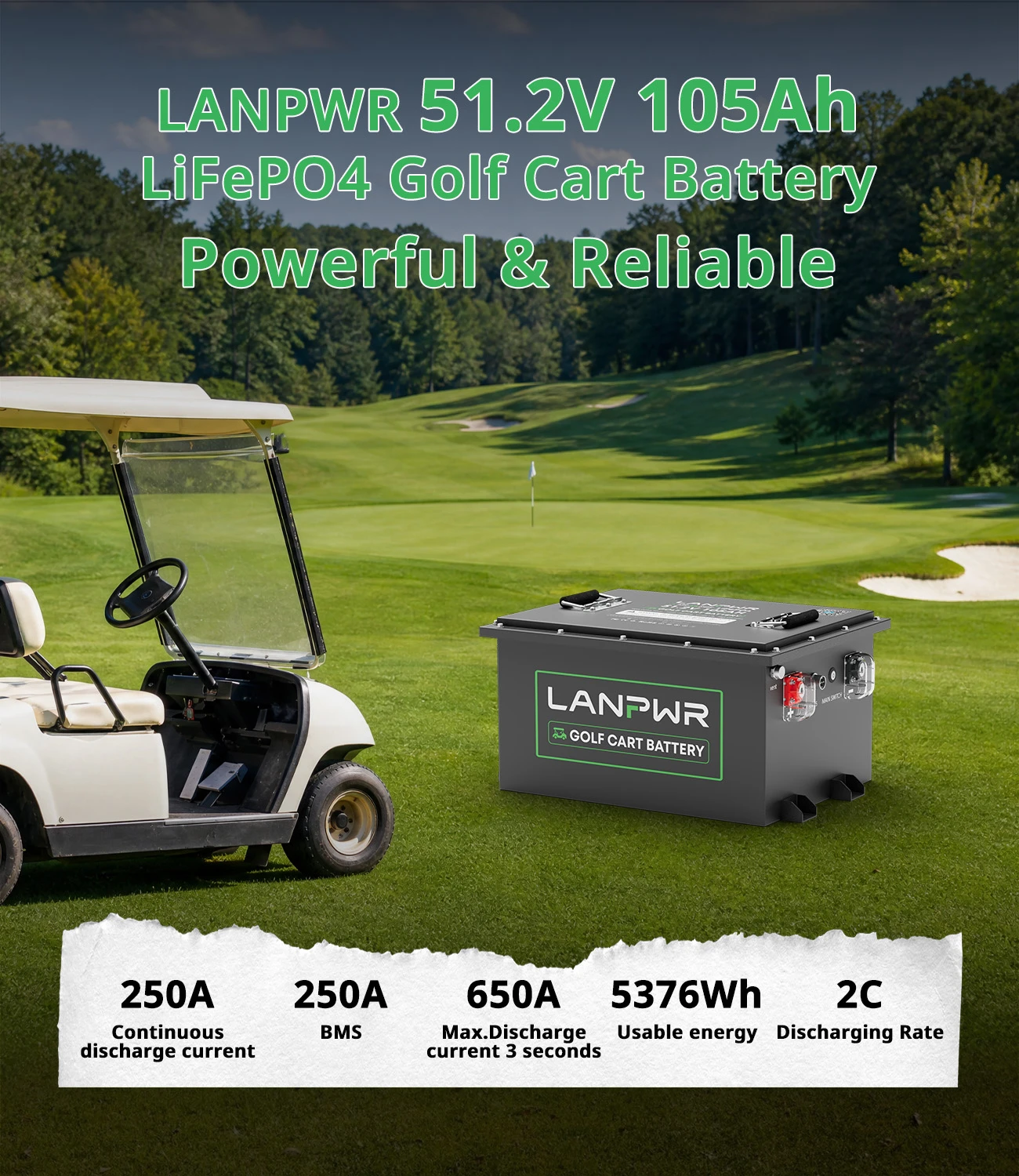

2. Controller Power: Continuous current demand must be within 250A (12.8kW max output), with peak startup current under 650A (for 3s).
3. Physical Bay Size: The battery bay must fit 39 x 32.5 x 25 cm.
If these conditions are met, it works seamlessly with EzGo, Club Car, Yamaha, and most 48V UTVs/utility vehicles.

Note: Older models equipped with an onboard computer (OBC), such as certain Club Car DS/Precedent systems, require a simple OBC bypass (connecting a short jumper wire) when upgrading to lithium. If needed, please contact our support team for step-by-step wiring guidance.

A:

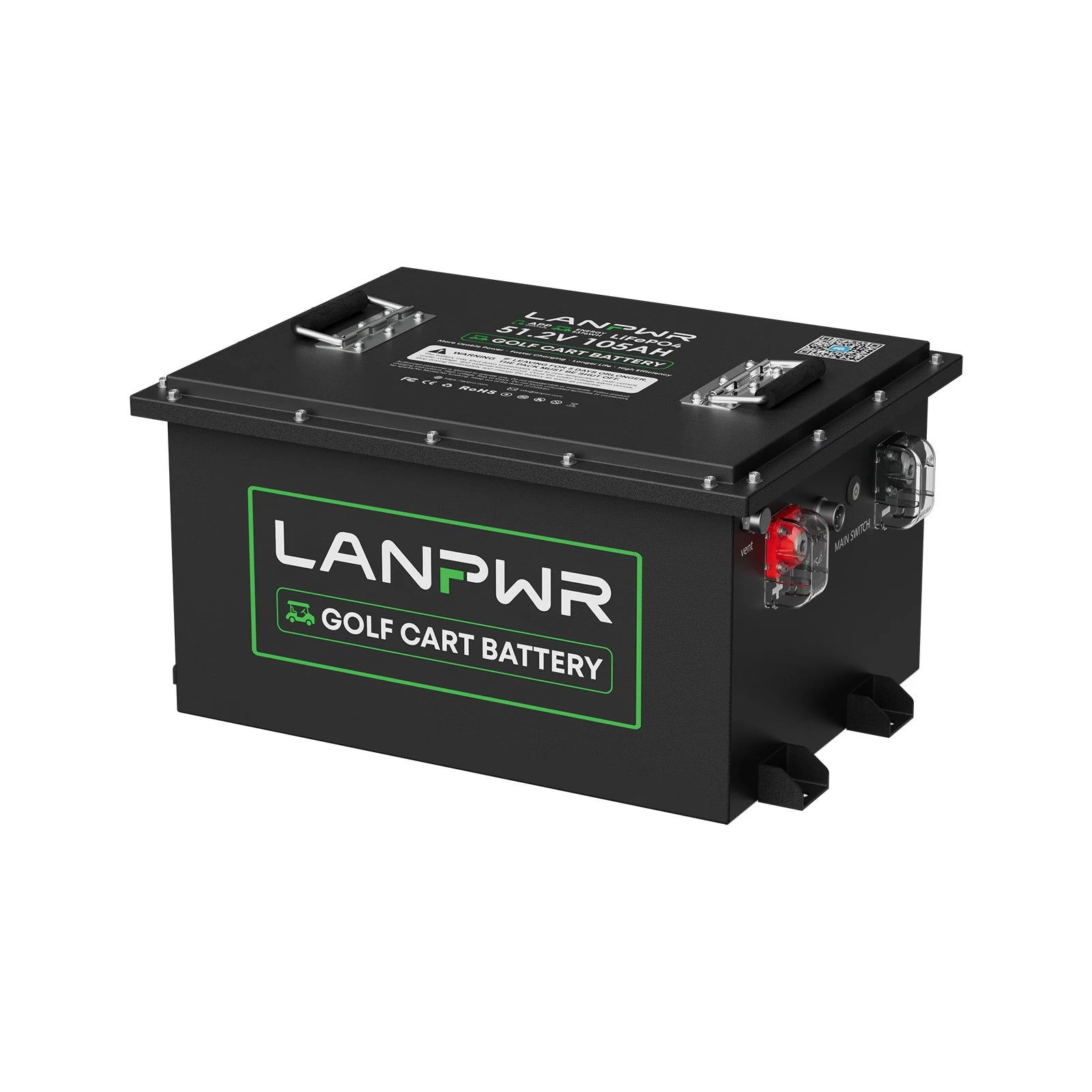

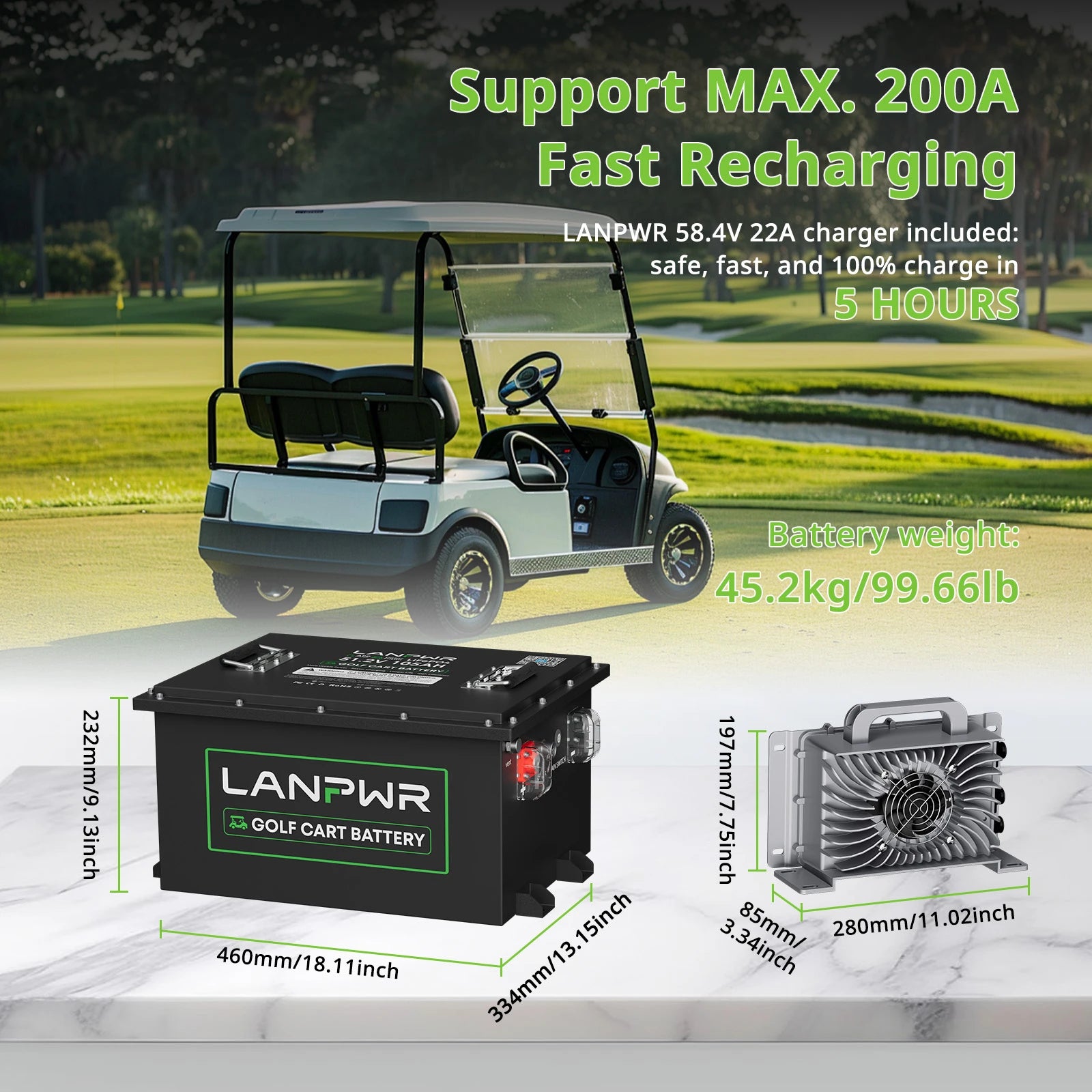

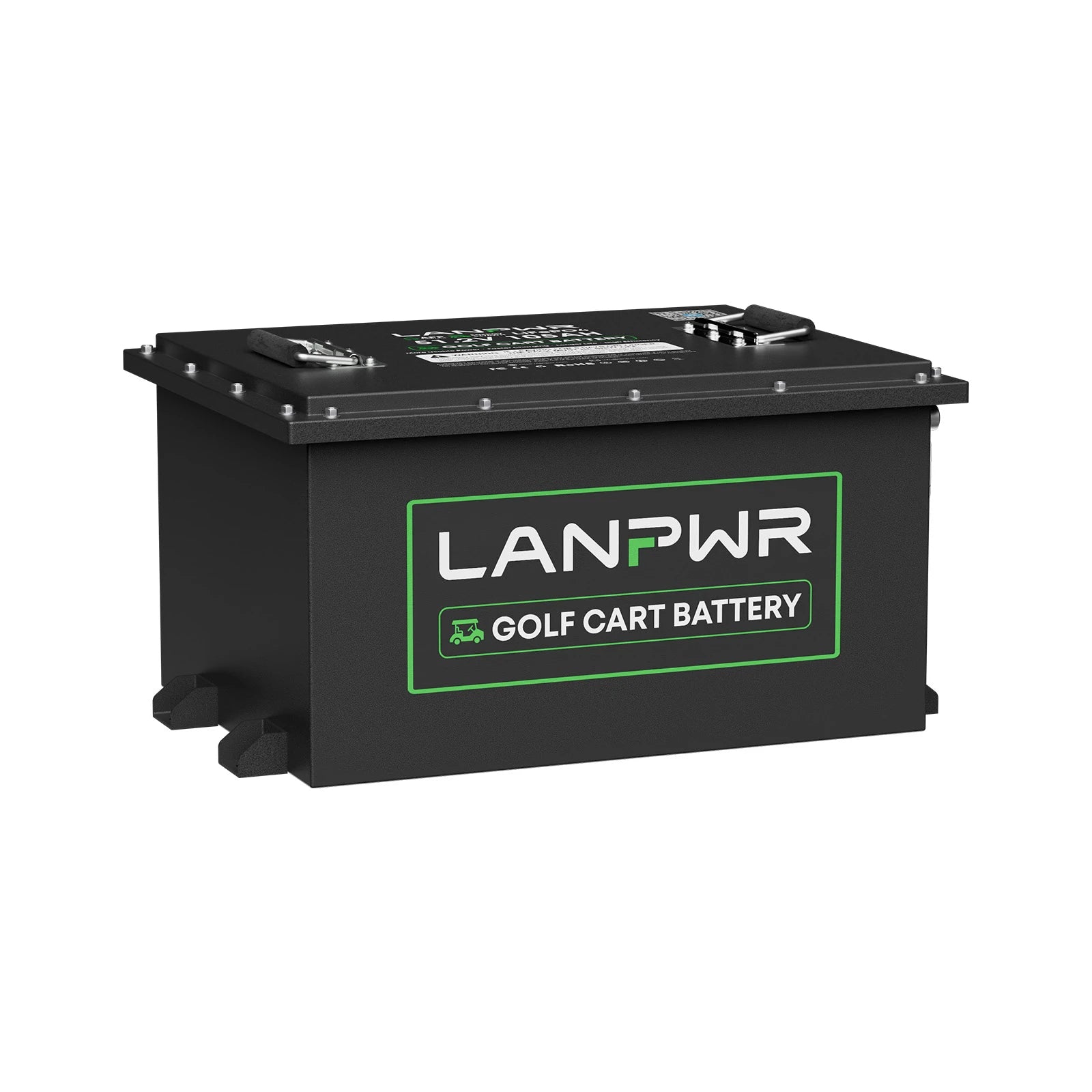

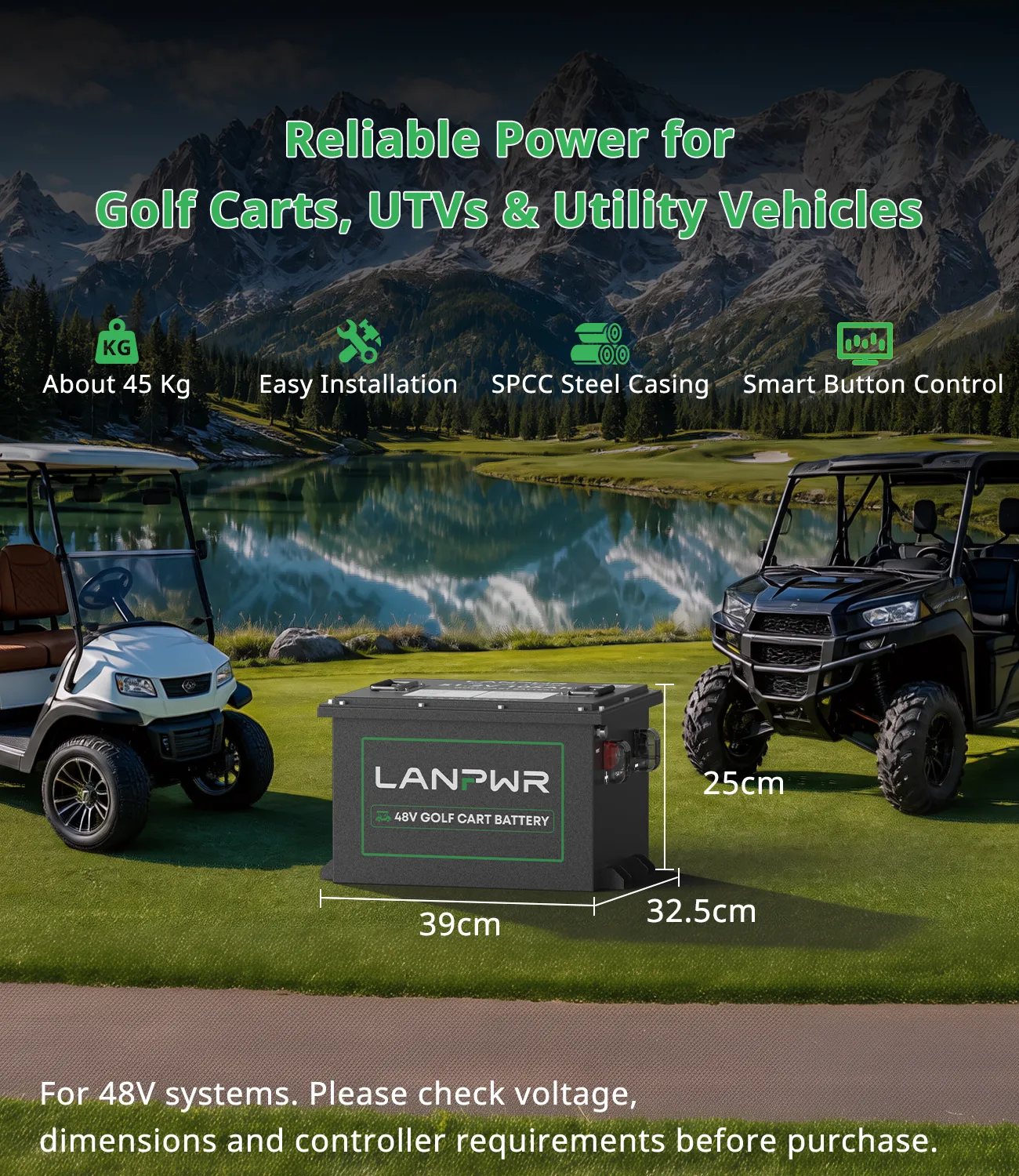

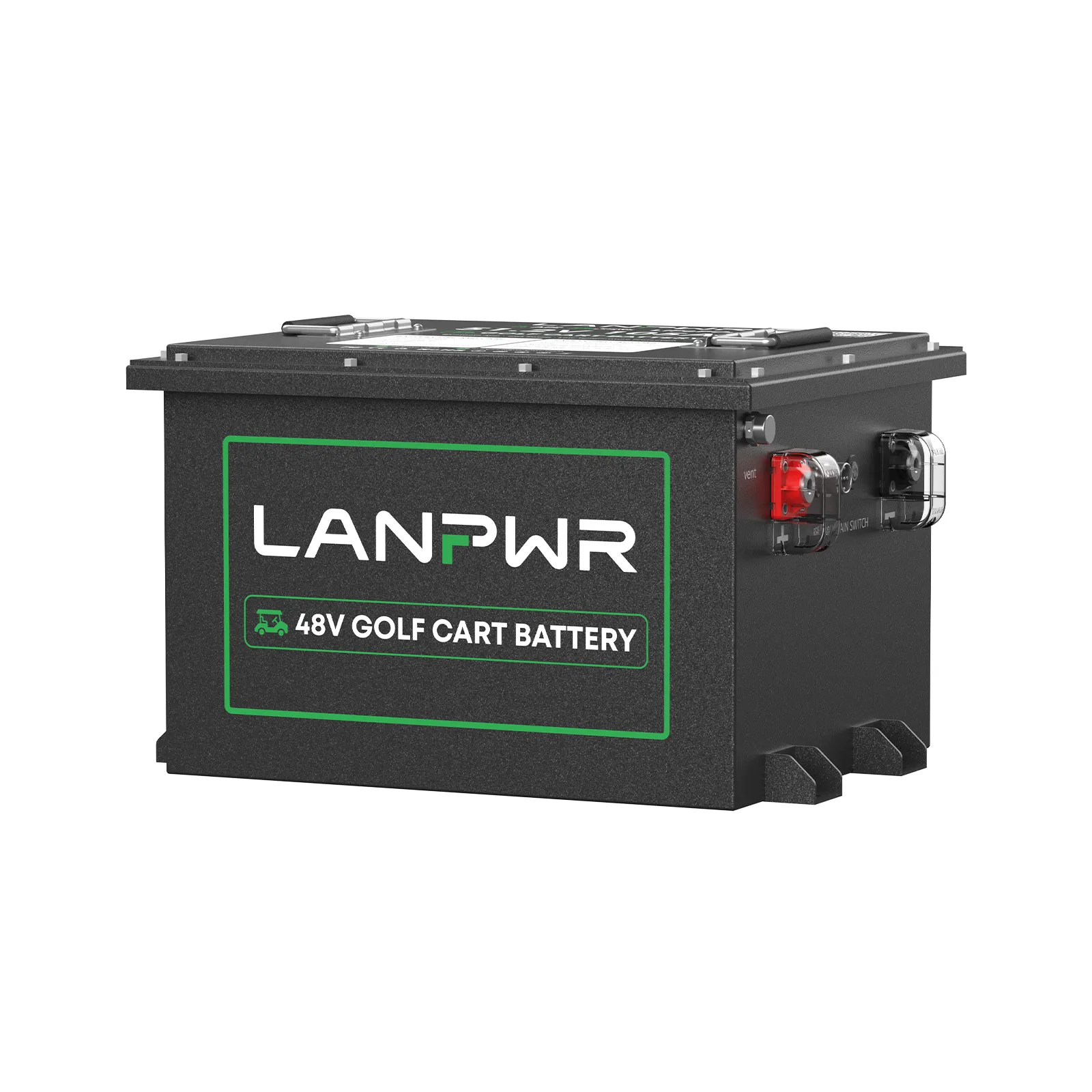

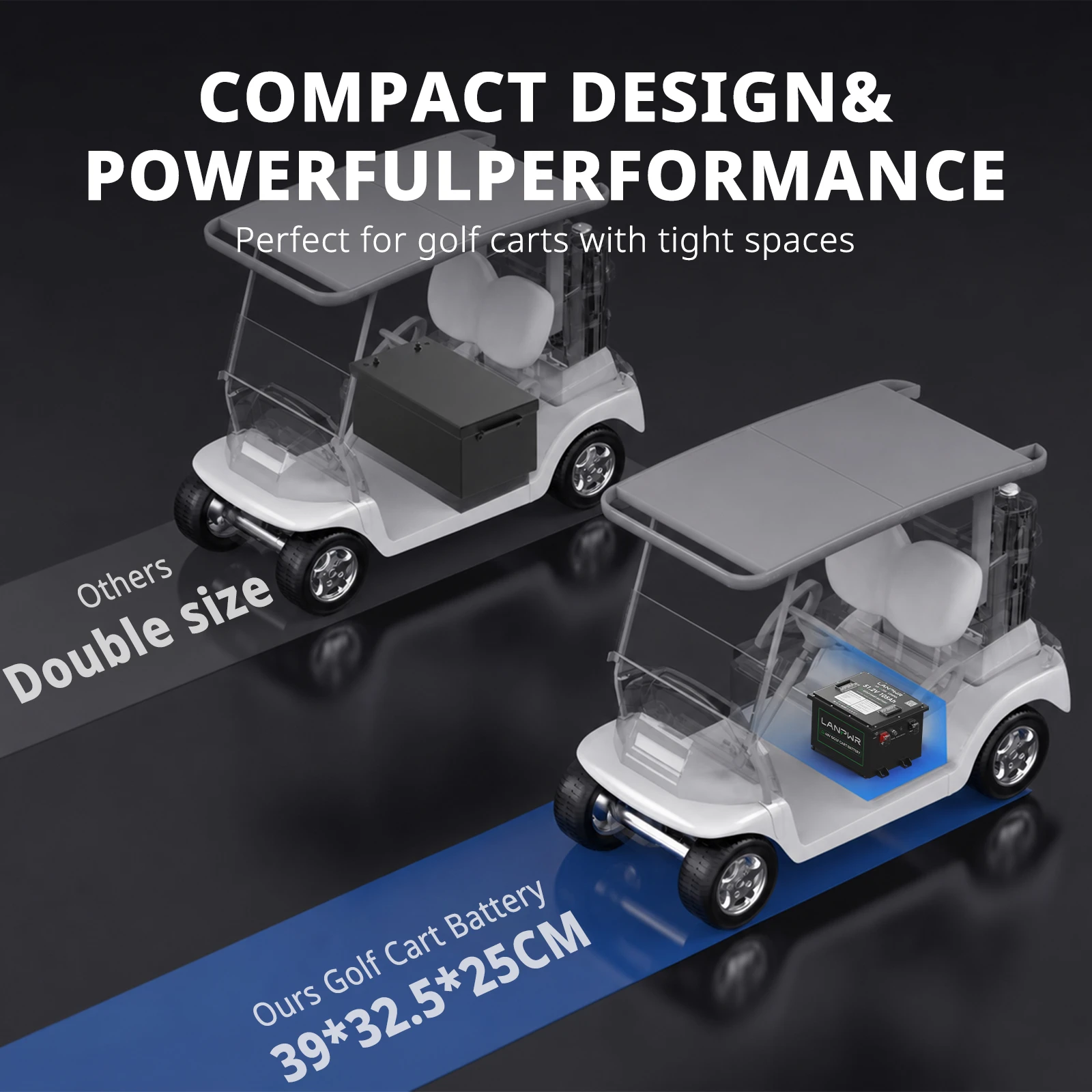

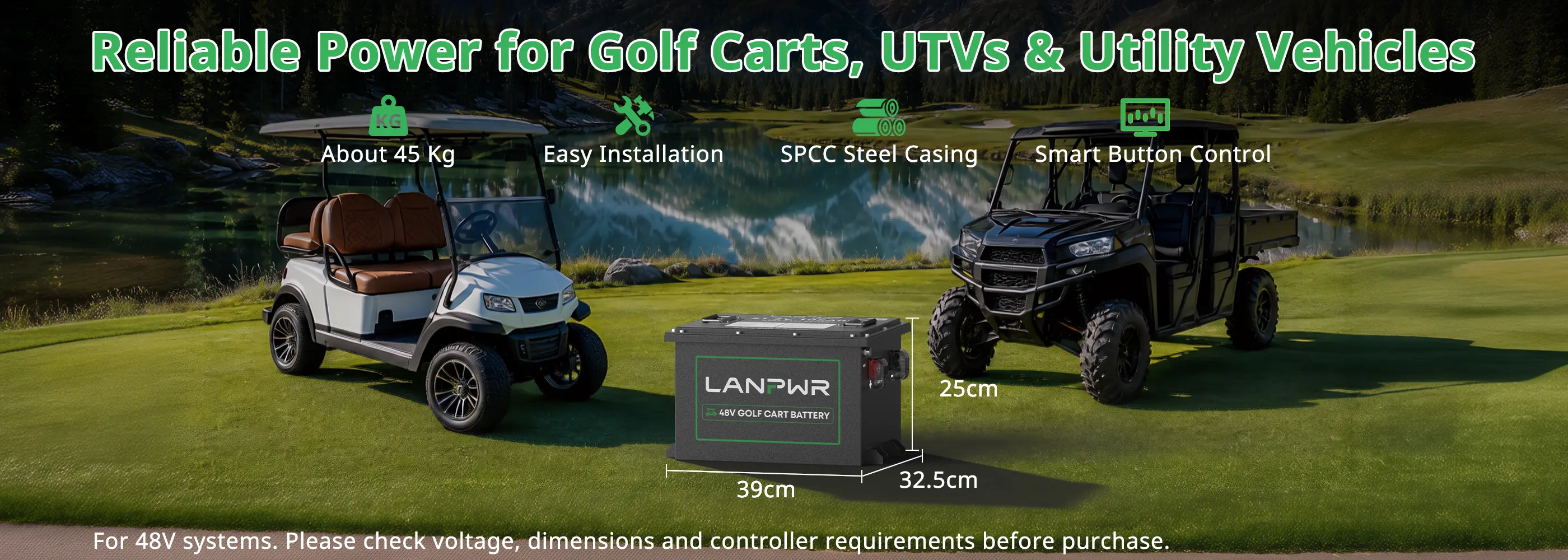

In most cases, yes. The battery measures 39 x 32.5 x 25 cm (15.35 x 12.80 x 9.84 inches). Since a standard 48V lead-acid system consists of six 8V or four 12V batteries that take up a significantly larger footprint, this compact single-unit battery easily drops into standard 48V battery bays.

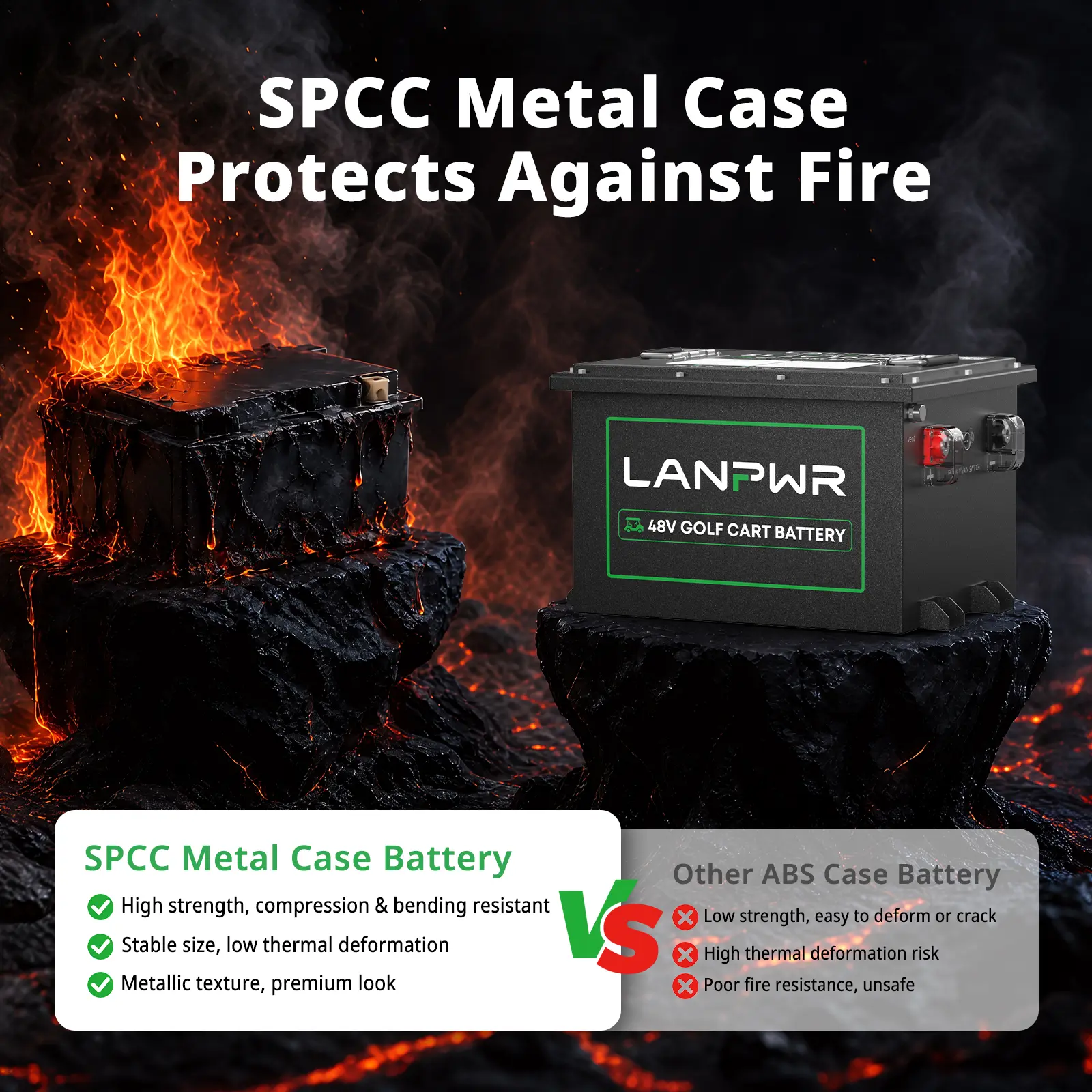

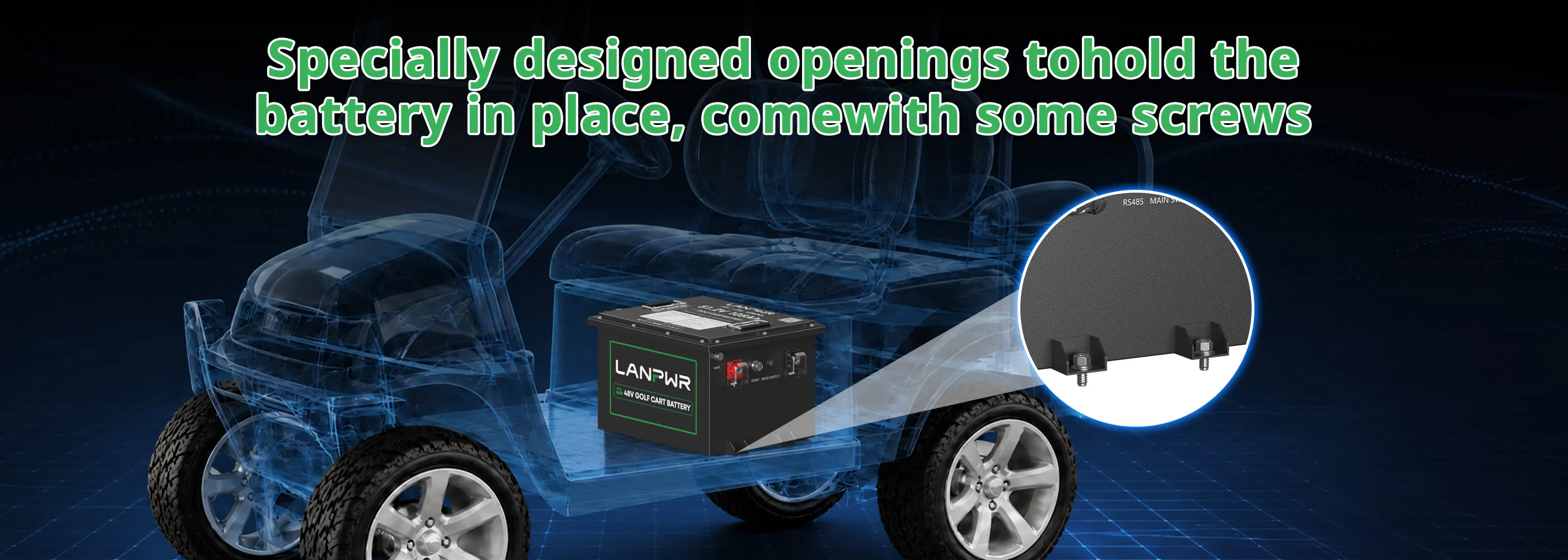

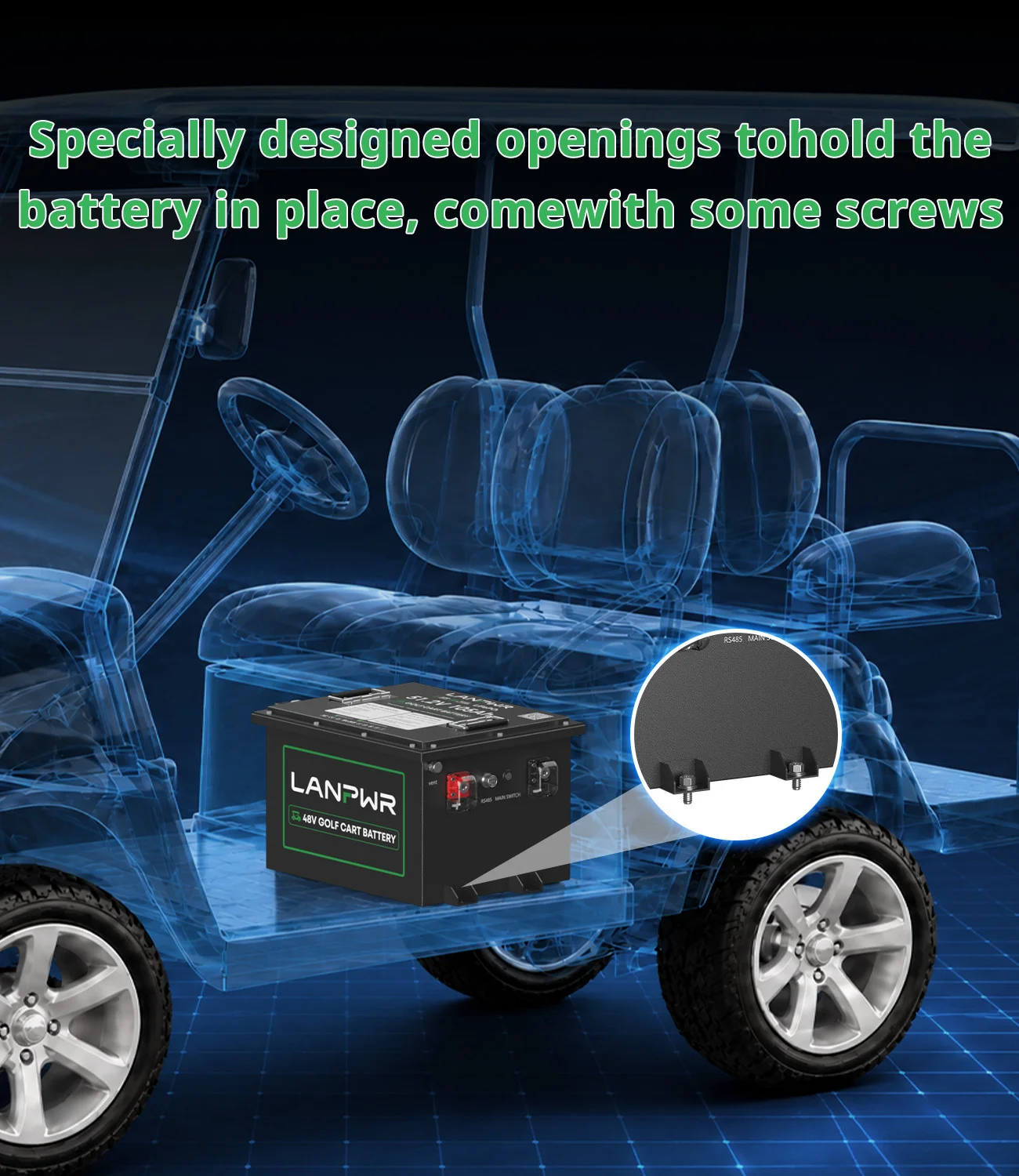

Pre-Purchase Checklist: Please measure your existing battery bay to ensure dimensions match. Due to the solid metal casing and 45 kg weight, a 2-person installation using the included mounting bolts is strongly recommended for safety.

A:

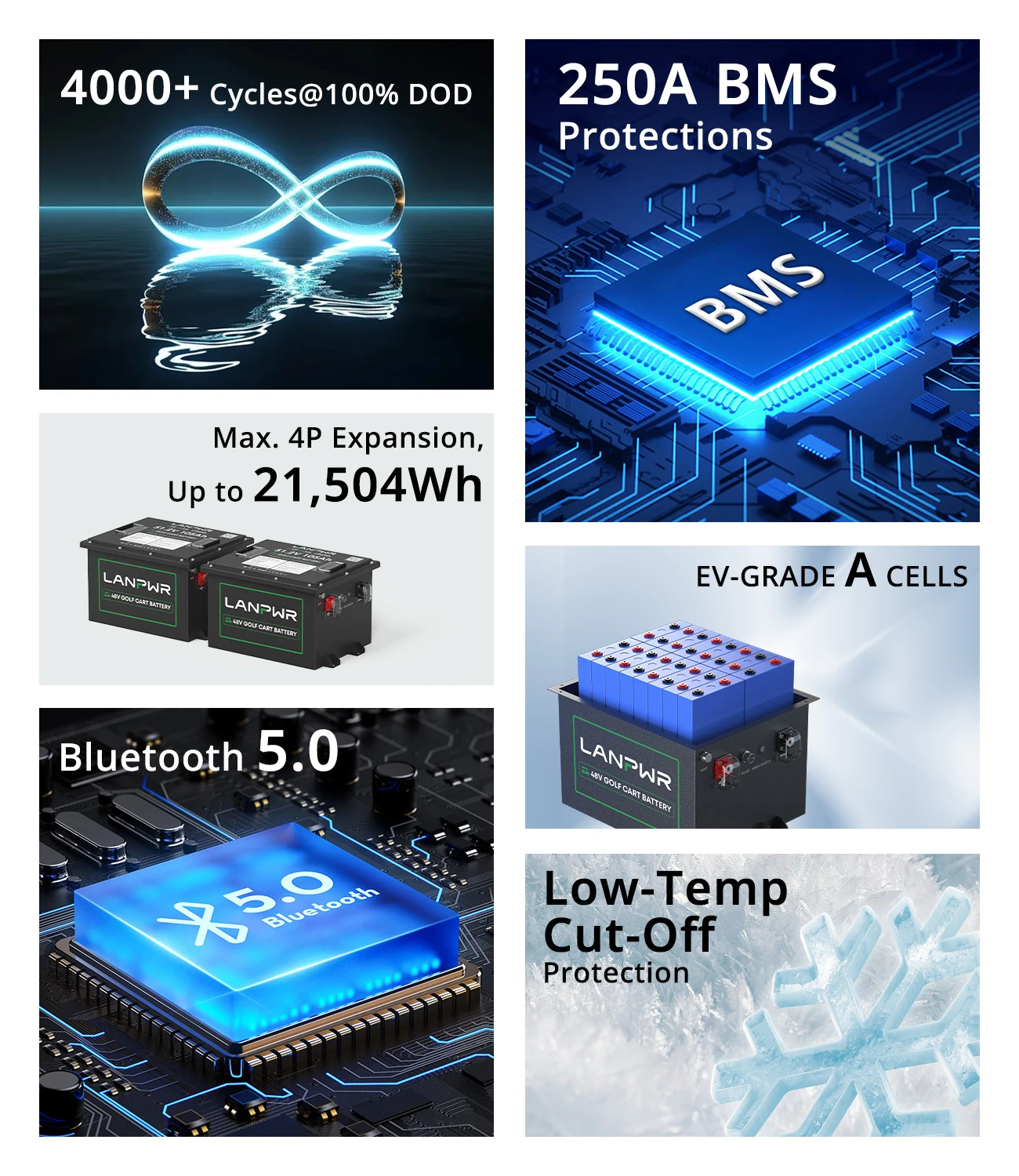

Yes, the battery supports up to 4P (4 in parallel) expansion for a total capacity of up to 21,504Wh.
Important: Parallel connections strictly require brand-new, identical batteries from the same batch and with identical voltage levels. Never mix old and new batteries, or batteries with different capacities/brands. (Note: Parallel connection cables are not included and must be sourced separately).

A:

A:

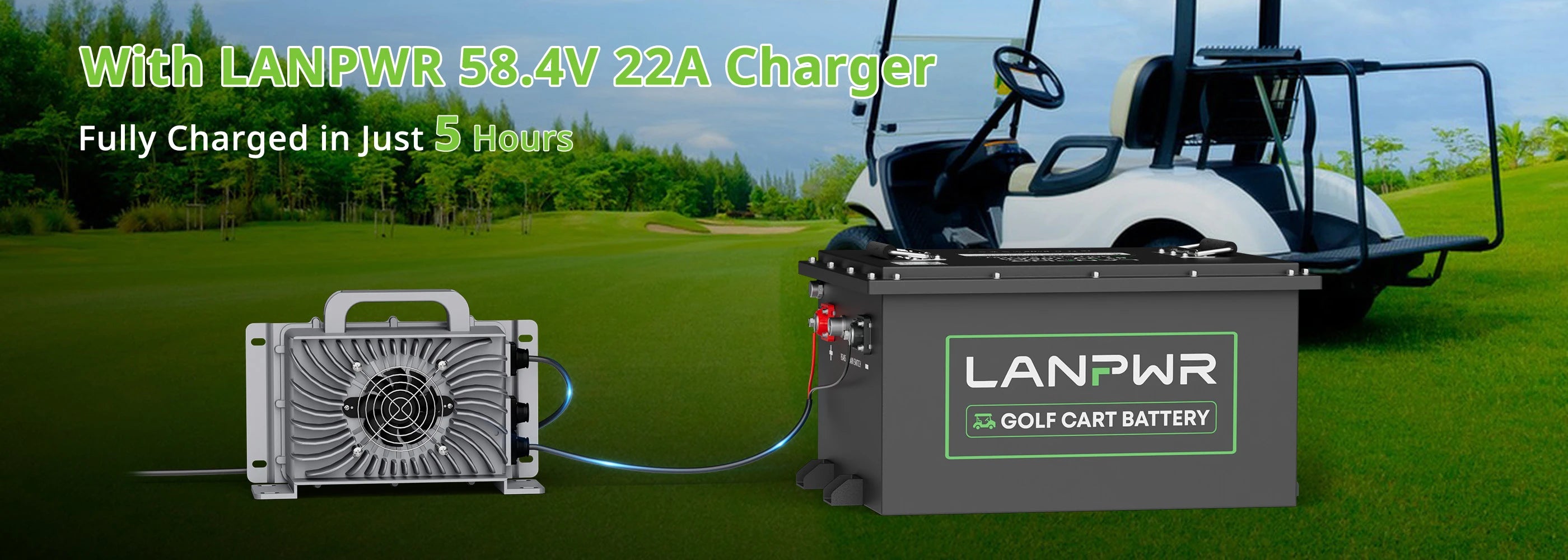

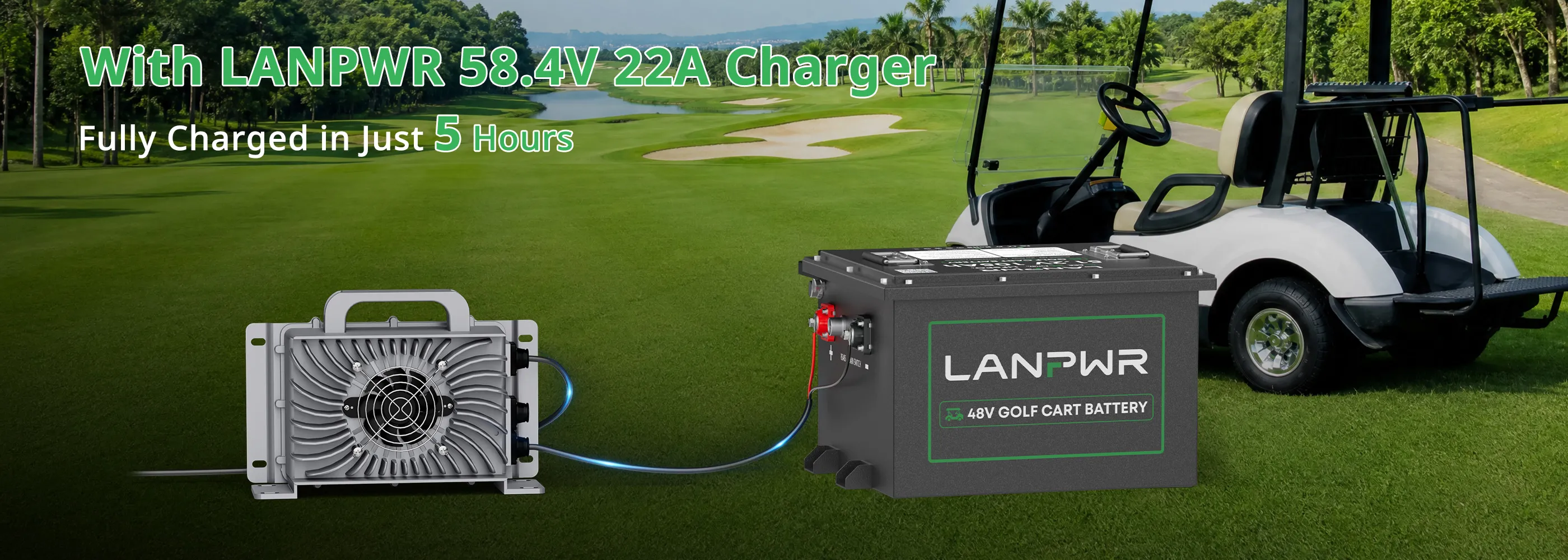

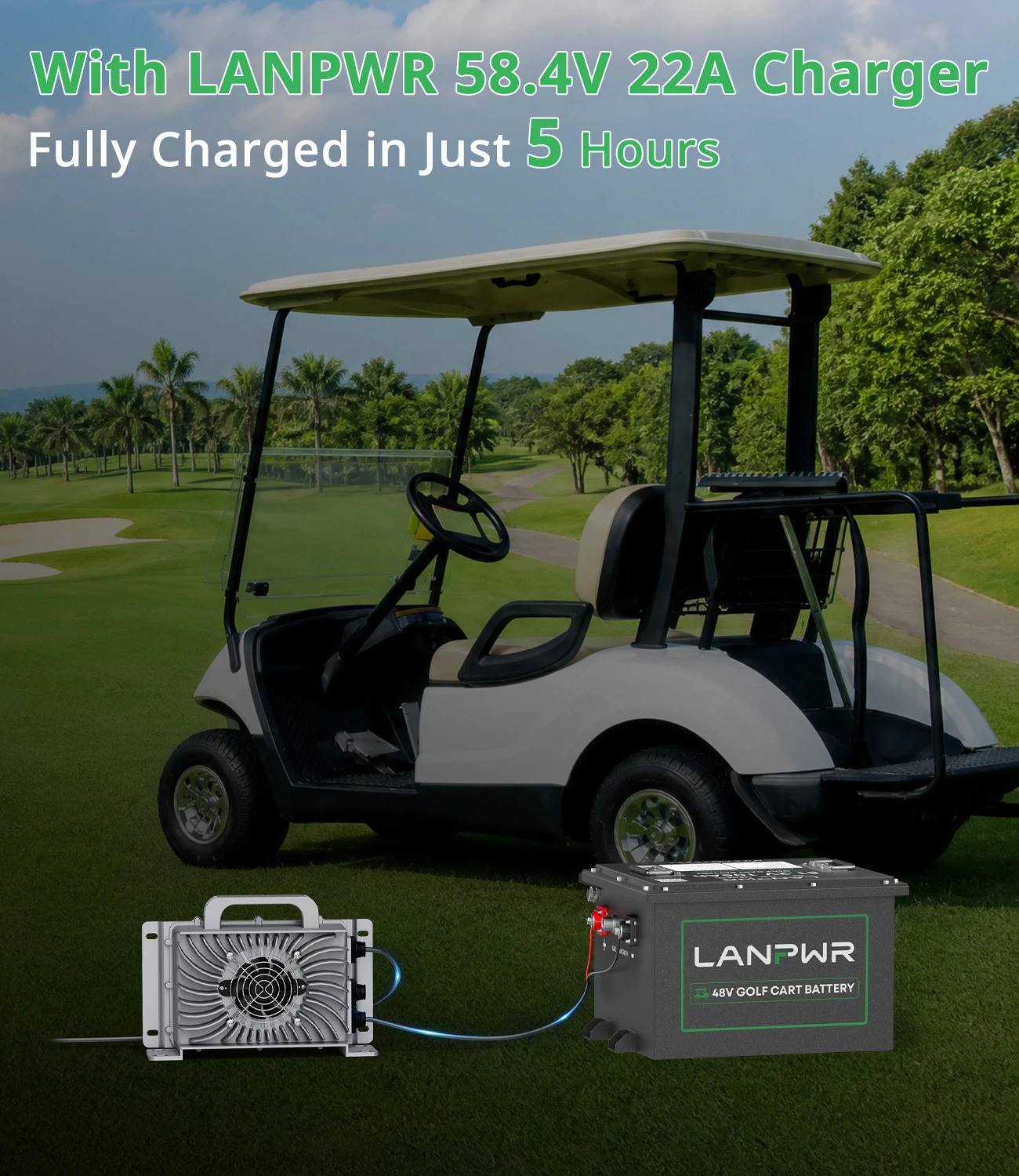

Using the included 58.4V 22A LiFePO4 charger, a full 0–100% charge takes approximately 5 hours—more than 3 times faster than traditional lead-acid battery packs.

A:

You have two real-time monitoring options:

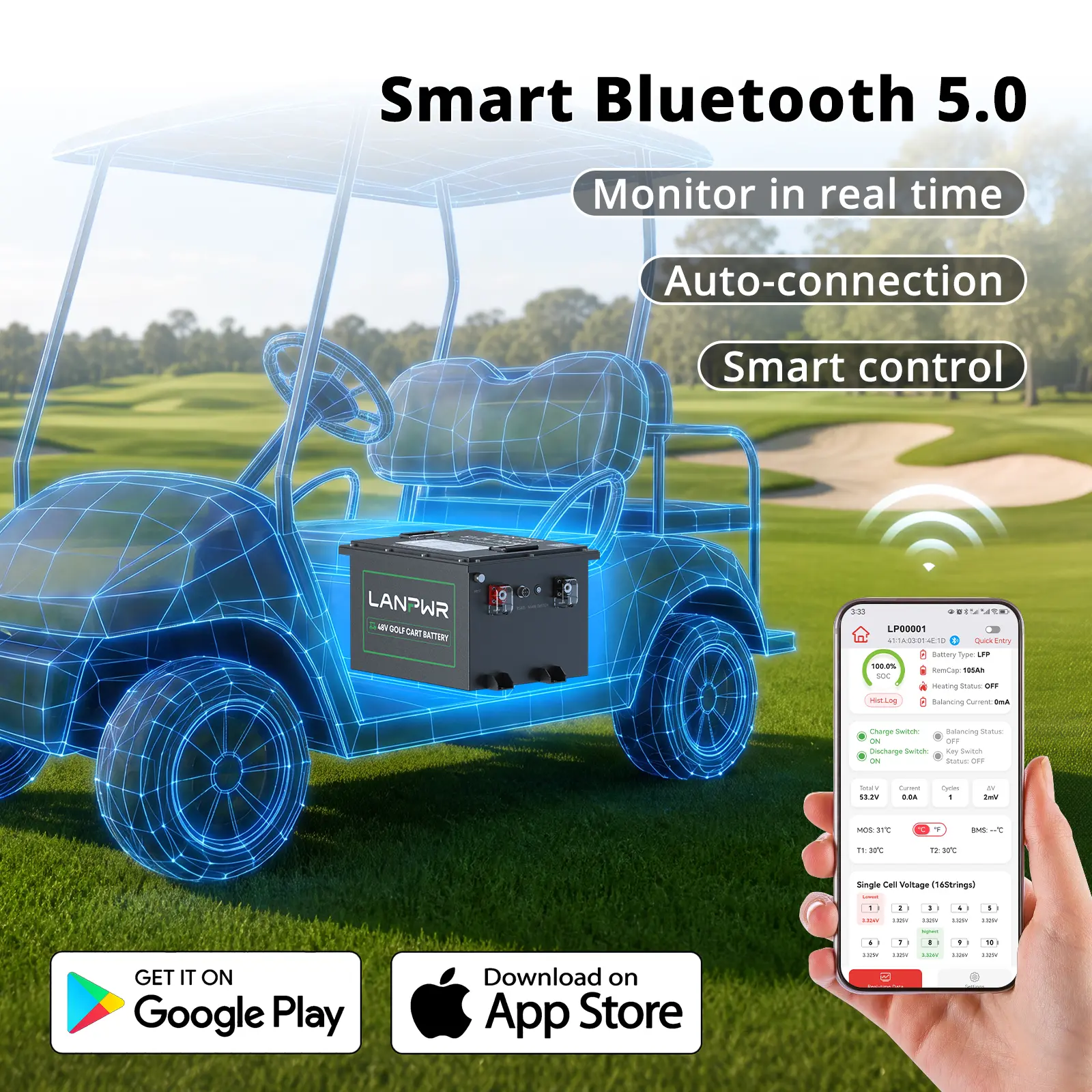

1. Bluetooth 5.0 App: Connect via your iOS or Android smartphone to check real-time State of Charge (SOC), voltage, cell balance, and temperature wirelessly.
2. Included External Display: Mount the included external display on your dashboard or near the battery bay and connect it using the provided communication cable for instant status monitoring.

A:

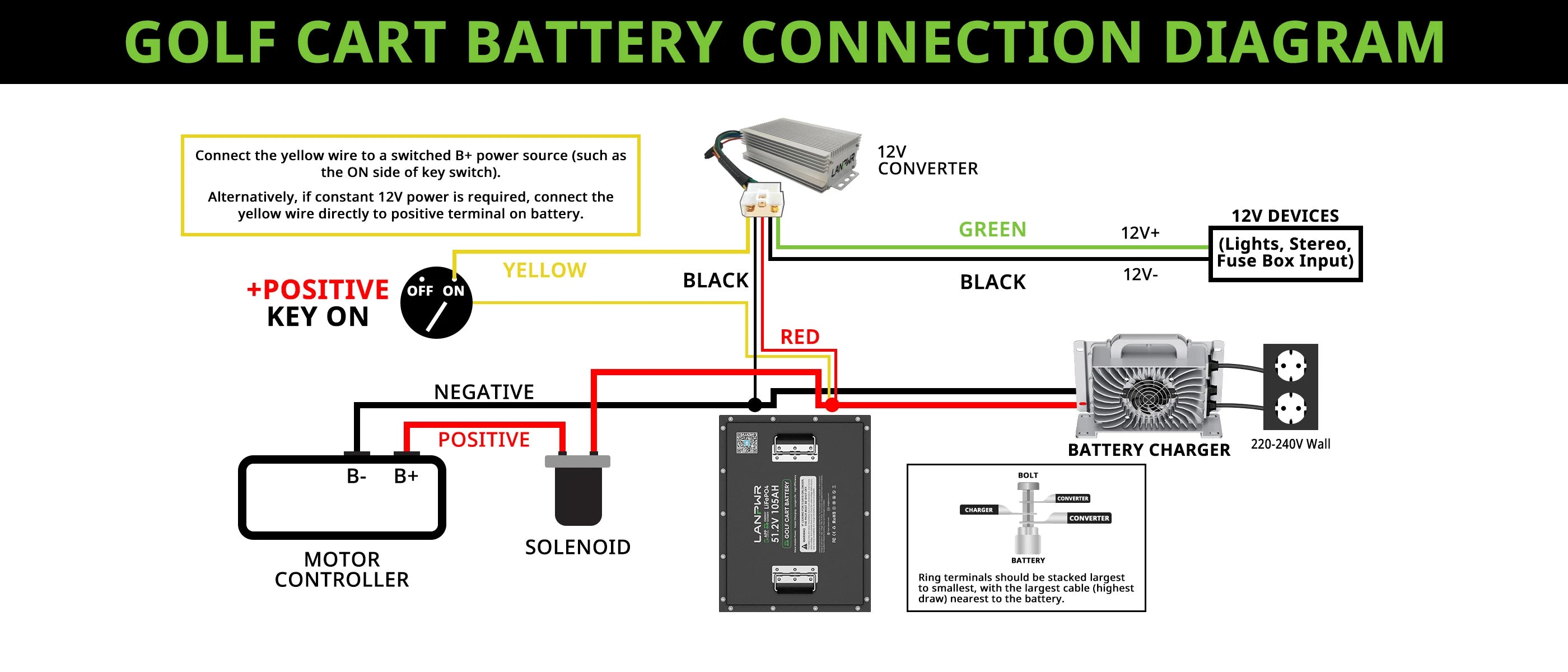

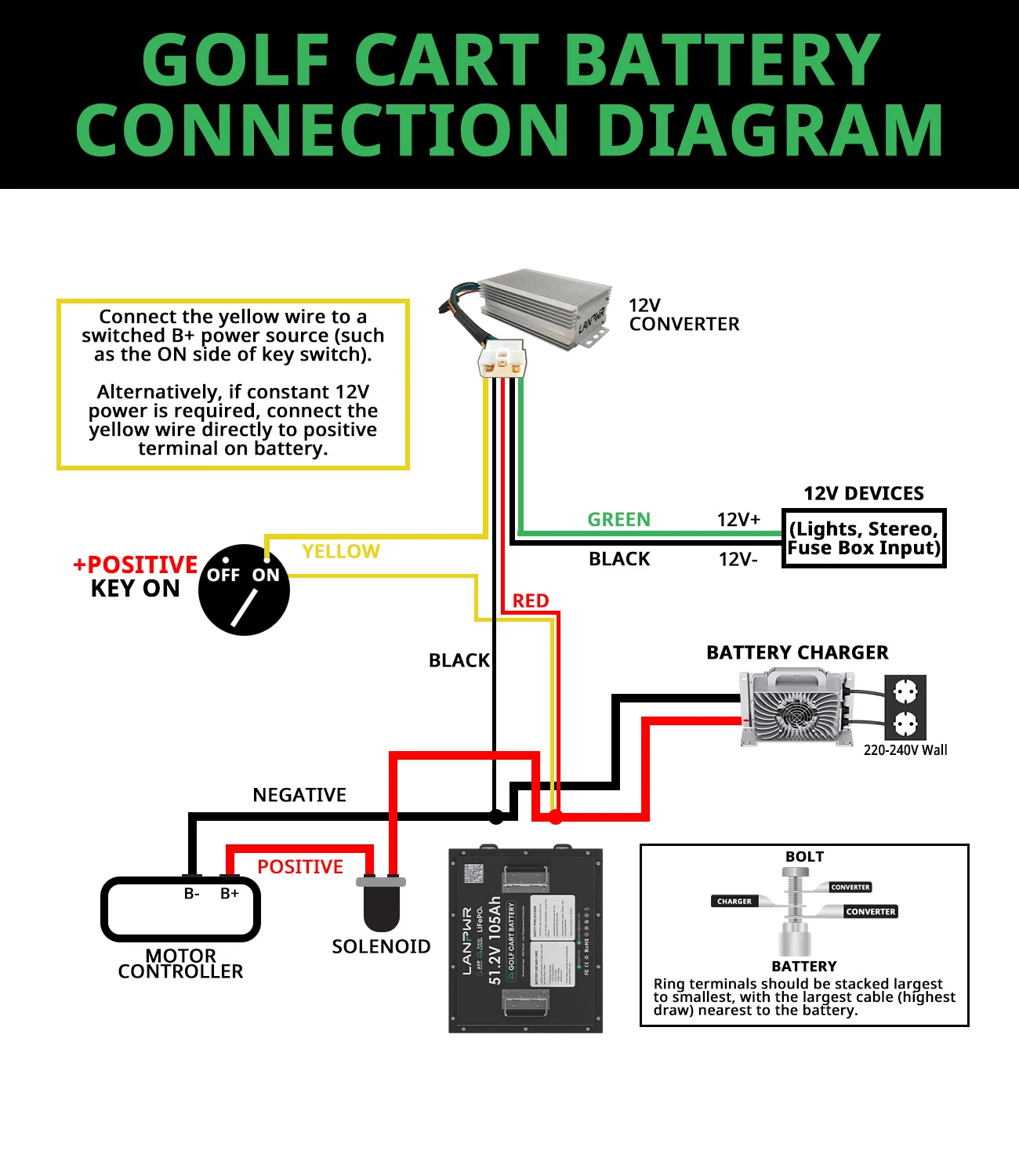

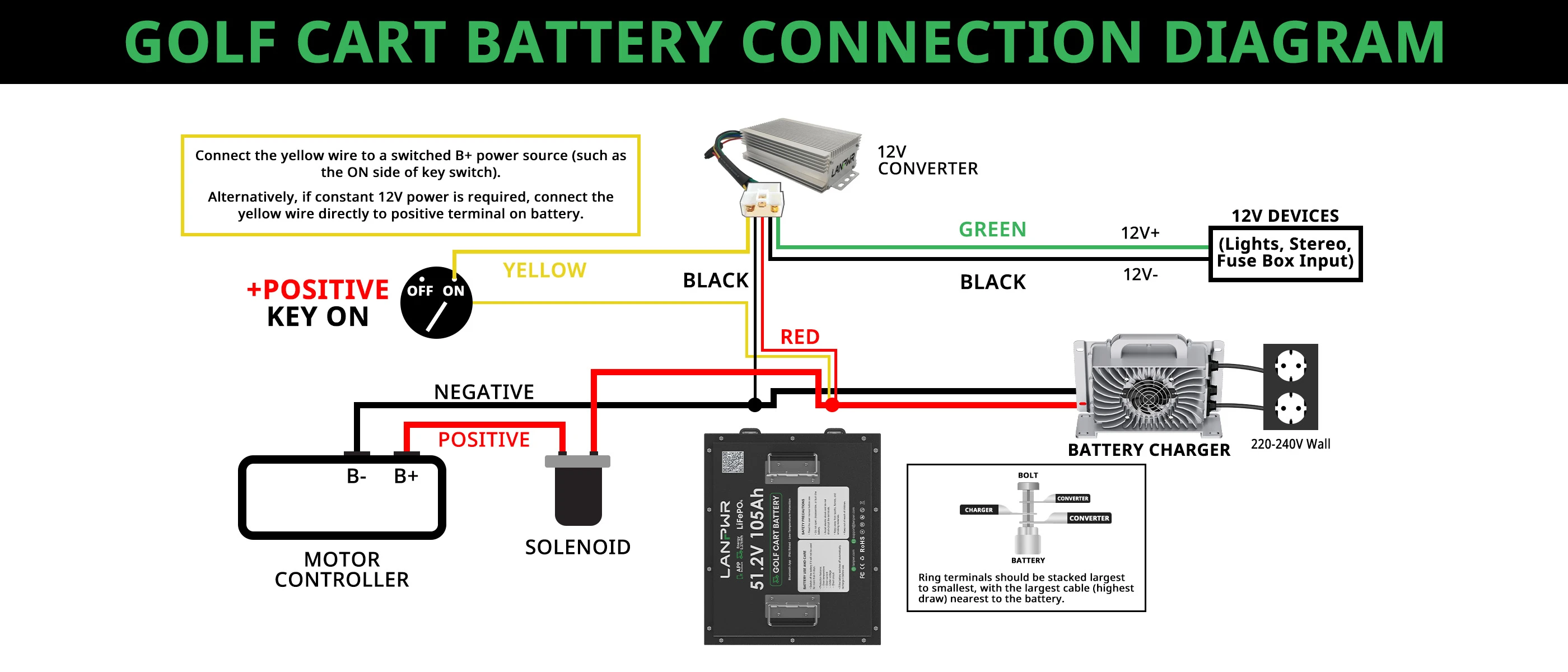

You can connect your existing 48V-to-12V DC-DC converter directly to the battery's terminals. If your vehicle does not have a pre-installed DC-DC converter, an external 48V-to-12V converter (sold separately) is required.
Note: Never connect 12V accessories directly to the 48V battery terminals without a converter, as this will immediately destroy your 12V accessories and is not covered by warranty.

A:

Under standard test conditions (flat paved road, moderate speed, standard single-driver load), it provides a maximum driving range of up to 80–90 km.

Note: Real-world range typically spans 50–70 km depending on golf course terrain, passenger load, driving speed, and ambient temperature.
